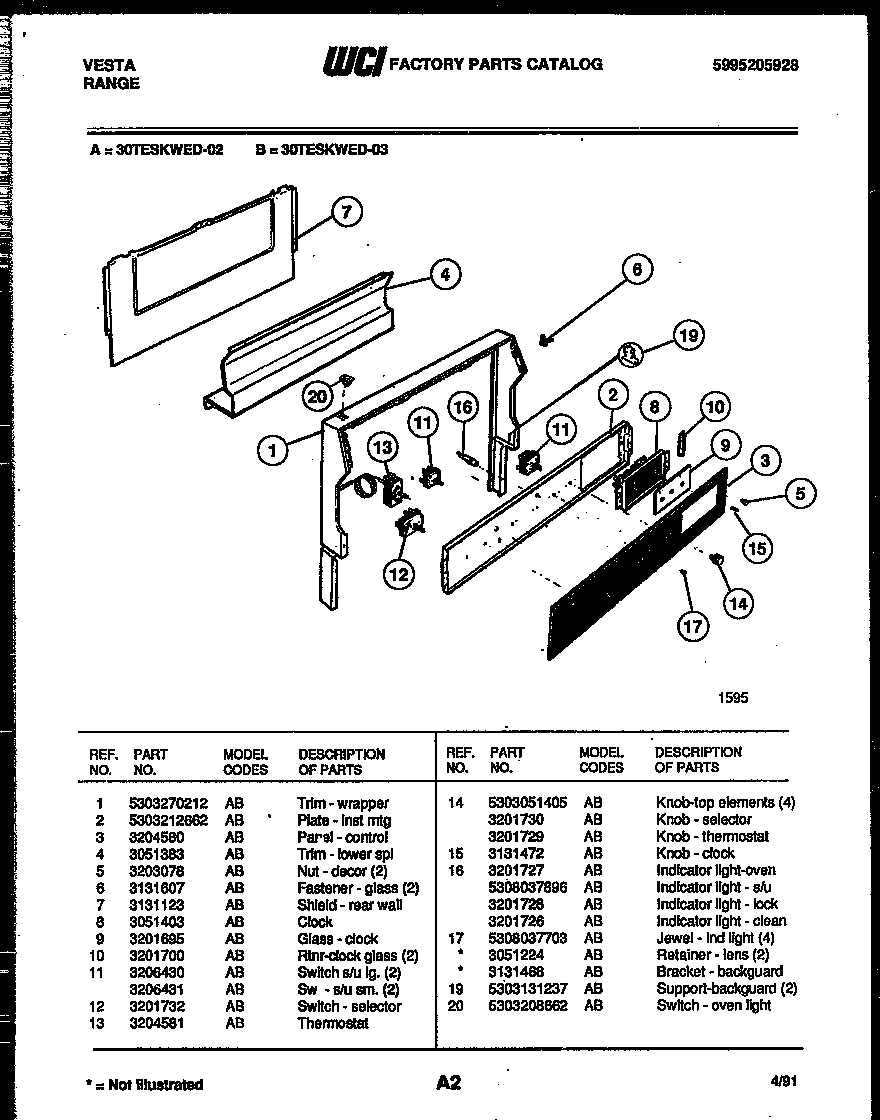

30TESKWED3 02 – BACKGUARDadmin2025-04-26T08:51:40+00:0030TESKWED3 02 – BACKGUARD
Products
| Position | Product |
|---|
| 1 | WCI 5303270212 |
| 2 | PLATE, INSTRUMENT MTG |
| 3 | WCI 3204580 |
| 4 | WCI 3051383 |
| 5 | NUT-DECOR (2) |
| 6 | FASTENER, GLASS (2) |
| 7 | SHIELD-BACKGUARD,REAR WALL |
| 8 | WCI 3051403 |
| 9 | WCI 3201695 |
| 10 | RETAINER, CLOCK GLASS, (2) |
| 11 | 5303935086 Frigidaire Oven Top Burner Switch Kit |
| 12 | WCI 3201732 |
| 13 | THERMOSTAT-OVEN |
| 14 | WCI 5303051405 |
| 14B | WCI 3201729 |
| 14A | WCI 3201730 |
| 15 | KNOB-CLOCK |
| 16 | INDICATOR LITE, OVEN (BLACK) |
| 16B | INDICATOR LIGHT-LOCK (1) |
| 16C | LIGHT/LAMP, INDICATOR, BLUE, 250 V |
| 16A | WCI 5308037896 |
| 17A | RETAINER-LENS |
| 17 | JEWEL LENS-AMBER |
| 17B | WCI 3131468 |
| 19 | SUPPORT-BACKGUARD,(2) |
| 20 | 5308015487 Frigidaire Switch-Oven Light |
