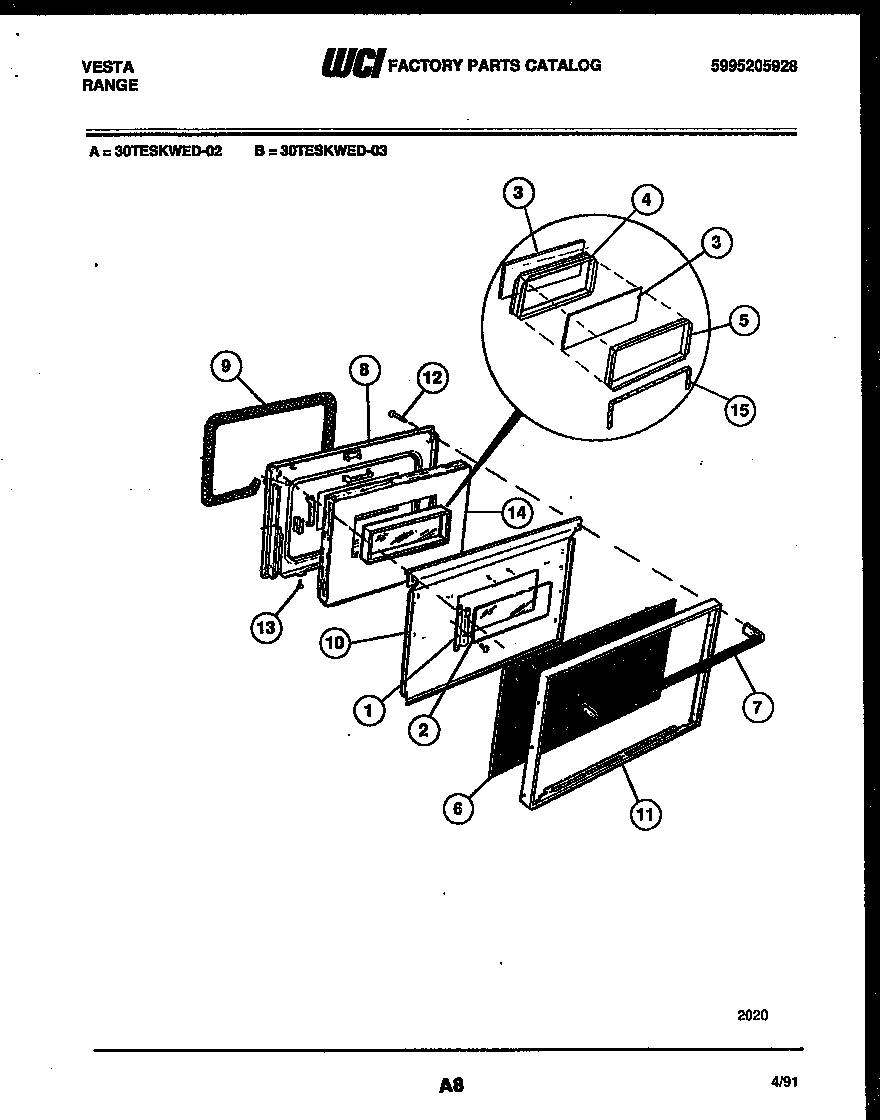

30TESKWED3 07 – DOOR PARTS

Products

Position	Product
*49527	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*49527	WCI 5303269859
*49527	5303300265 Frigidaire Oven Screw
*49527	FSTNR-NYLON SPACER (NON-ILLUSTRATED)
*49527	REFLECTOR, ALUMINUM FOIL
*49527	5303208655 Frigidaire Reflector Assembly
1	BRACKET-GLASS MTG
2	GLASS-OVEN DOOR, INNER
3	GLASS-OVEN DOOR, HEAT BARRIER, (2)
4	WCI 5303209517
5	WCI 5303209511
6	GLASS FRNT
7	HANDLE-OVEN DOOR
8	WCI 5303209515
9	5303131601 Frigidaire Oven Seal
10	SHIELD-INSULATION
11	WCI 5303209518
12	SCREW - HANDLE (2)
13	5303271648 Frigidaire Oven Screw
14	INSULATION-OVEN DOOR
15	SEAL-ROPE, 0.25 DIA
