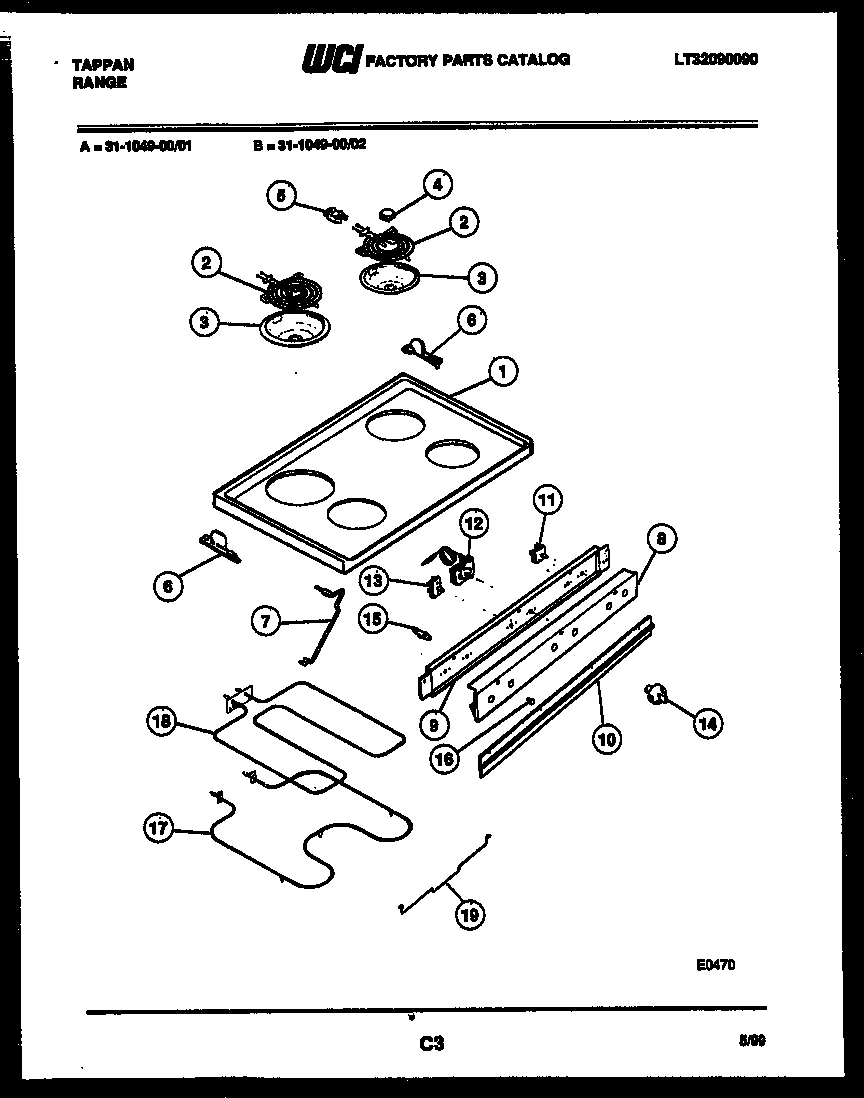

31-1049-00-01 05 – COOKTOP AND BROILER PARTS

31-1049-00-01 05 – COOKTOP AND BROILER PARTS

Written by

in

31-1049-00-01 05 – COOKTOP AND BROILER PARTS

Products

PositionProduct
*26351ANTI-TIP KIT (NOT ILLUSTRATED)
*26351RETAINER-LENS
1WCI 3051379
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
4MEDALLION, STAINLESS STEEL, SURF ELEM
55303935058 Frigidaire Oven Burner Receptacle Kit
6ABRACKET-HINGE,MAIN TOP RH
6BRACKET-HINGE,MAIN TOP LH
7ROD – MAINTOP SUPT.
8WCI 3204683
9PLATE-INSTRUMENT MTG
10WCI 3204623
11A5303935086 Frigidaire Oven Top Burner Switch Kit
12THERMO OVN-LOWR
13WCI 3016812
14WCI 3204681
14AKNOB – THERMOSTAT
14BKNOB – SW SELECTOR
15AIND LIGHT-250V (2)
15WCI 5308037896
16JEWEL LENS-AMBER
17316075103 Frigidaire Oven Bake Element
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
