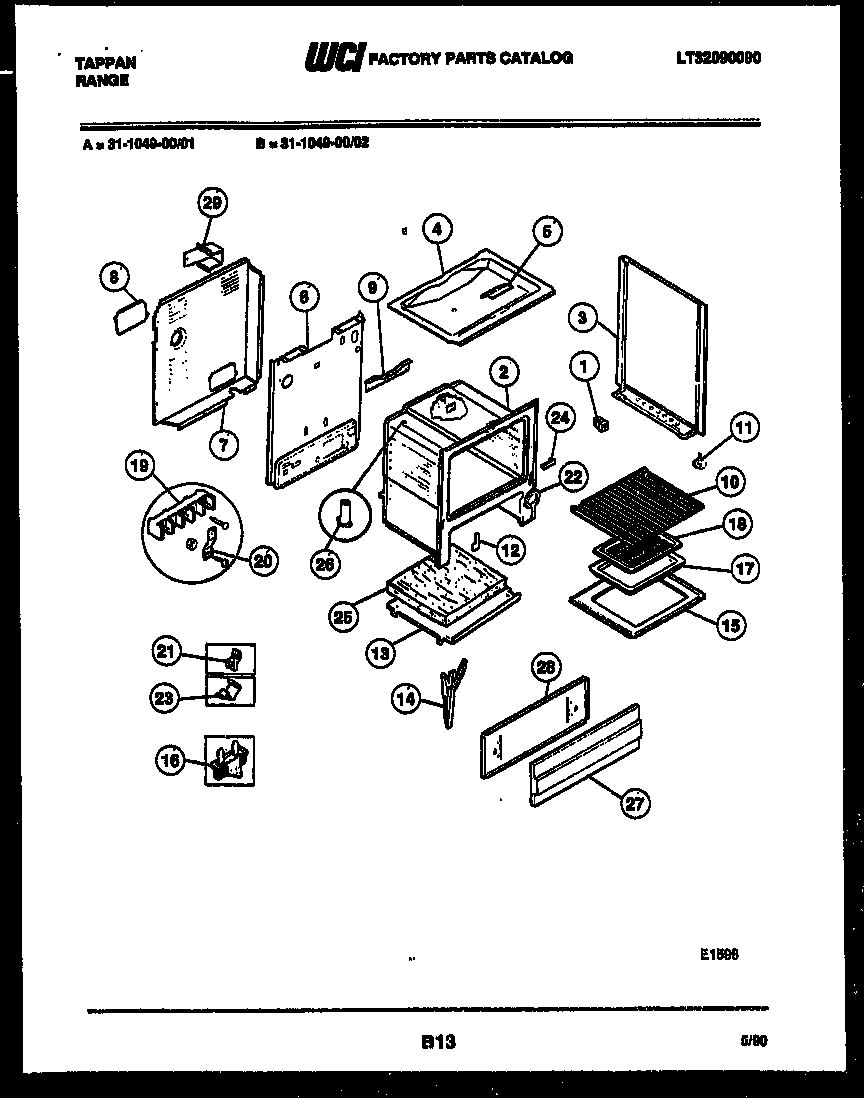

31-1049-00-02 02 – BODY PARTS

Products

Position	Product
*26343	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3A	PNL-BODYSIDE RH-WHITE
3	PNL-BODYSIDE LH-WHITE
4	WCI 3017926
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHAN-DOOR HINGE (2)
15	PANEL-OVEN BOTTOM
16	FUSE-THERMO CUTOUT
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051218 Frigidaire Oven Plate
23	WCI 3051367
24	COVER-OVEN FRONT
25	316403803 Frigidaire Insulation
26E	WCI 08067783
26D	SCREW - CHANNEL MTG (NON-ILLUSTRATED)
26C	3131903 Frigidaire Door/Drawer Bumper
26B	INSUL - OVEN BACK (NON-ILLUSTRATED)
26A	INSULATION, OVEN WRAPPER
26	WCI 3051344
27	PNL - DRAWER (WHITE)
28A	WCI 3051387
28	SHIELD-PNL
29	WCI 3203582
