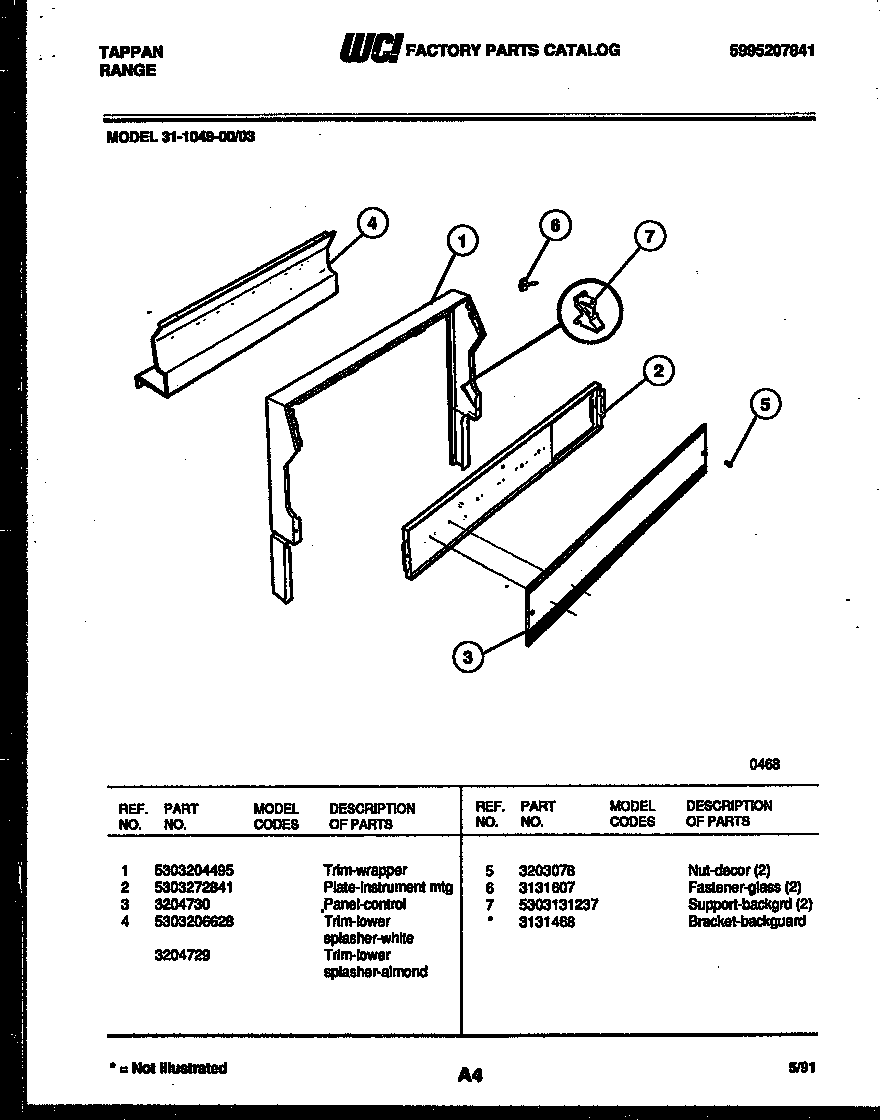

31-1049-00-03 03 – BACKGUARD
Products
| Position | Product |
|---|---|
| *52037 | WCI 3131468 |
| 1 | WCI 5303204495 |
| 2 | PLATE-INST. MTG. |
| 3 | WCI 3204730 |
| 4 | WCI 5303206628 |
| 4 | WCI 3204729 |
| 5 | NUT-DECOR (2) |
| 6 | FASTENER, GLASS (2) |
| 7 | SUPPORT-BACKGUARD,(2) |
31-1049-00-03 03 – BACKGUARD
| Position | Product |
|---|---|
| *52037 | WCI 3131468 |
| 1 | WCI 5303204495 |
| 2 | PLATE-INST. MTG. |
| 3 | WCI 3204730 |
| 4 | WCI 5303206628 |
| 4 | WCI 3204729 |
| 5 | NUT-DECOR (2) |
| 6 | FASTENER, GLASS (2) |
| 7 | SUPPORT-BACKGUARD,(2) |
