31-1049-00-03 05 – COOKTOP AND BROILER PARTS

31-1049-00-03 05 – COOKTOP AND BROILER PARTS

Written by

in

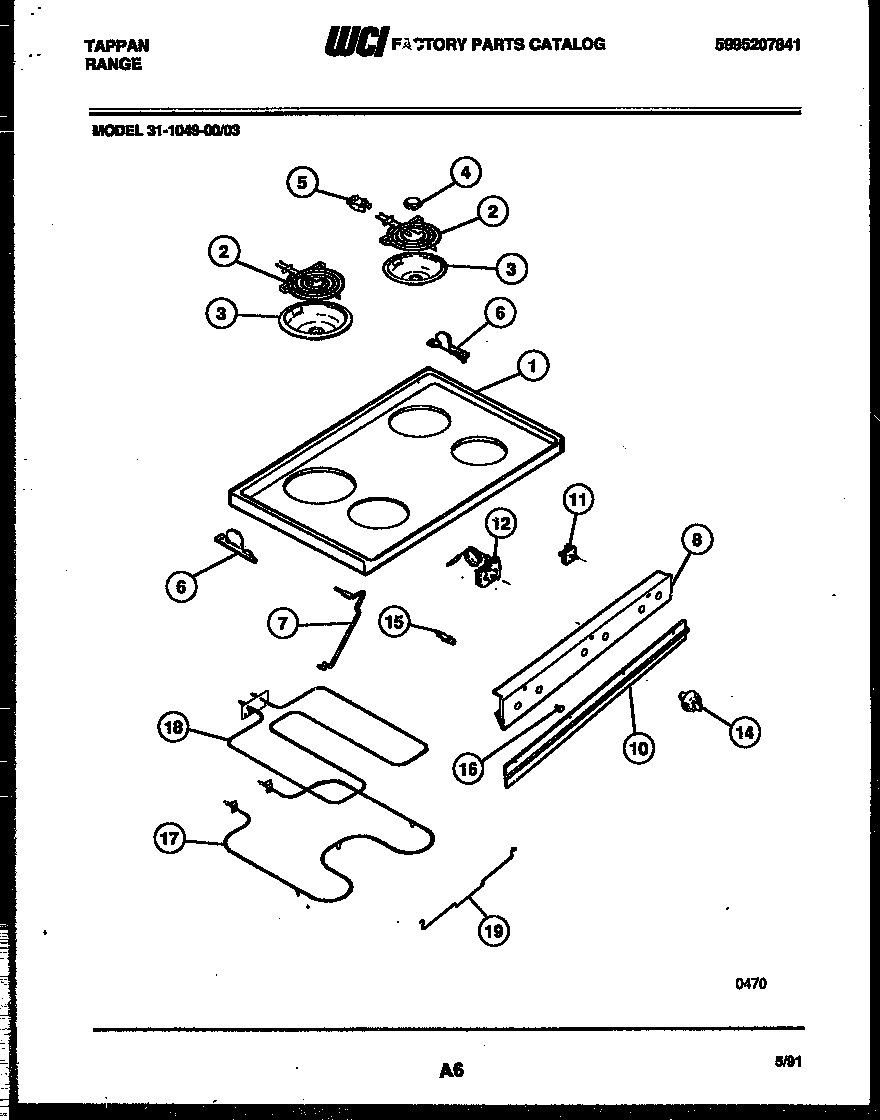

31-1049-00-03 05 – COOKTOP AND BROILER PARTS

Products

PositionProduct
*52041WCI 19100210058
*52041ANTI-TIP KIT (NOT ILLUSTRATED)
1WCI 3051380
1WCI 3051379
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4MEDALLION, STAINLESS STEEL, SURF ELEM
55303935058 Frigidaire Oven Burner Receptacle Kit
6BRACKET-HINGE,MAIN TOP LH
6ABRACKET-HINGE,MAIN TOP RH
7ROD-MAIN SUPPORT (2)
8WCI 5303211419
10WCI 3204623
11A5303935086 Frigidaire Oven Top Burner Switch Kit
12WCI 5303210266
14WCI 5303201272
14WCI 5303201271
15WCI 5303210270
16JEWEL-IND
17316075103 Frigidaire Oven Bake Element
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
