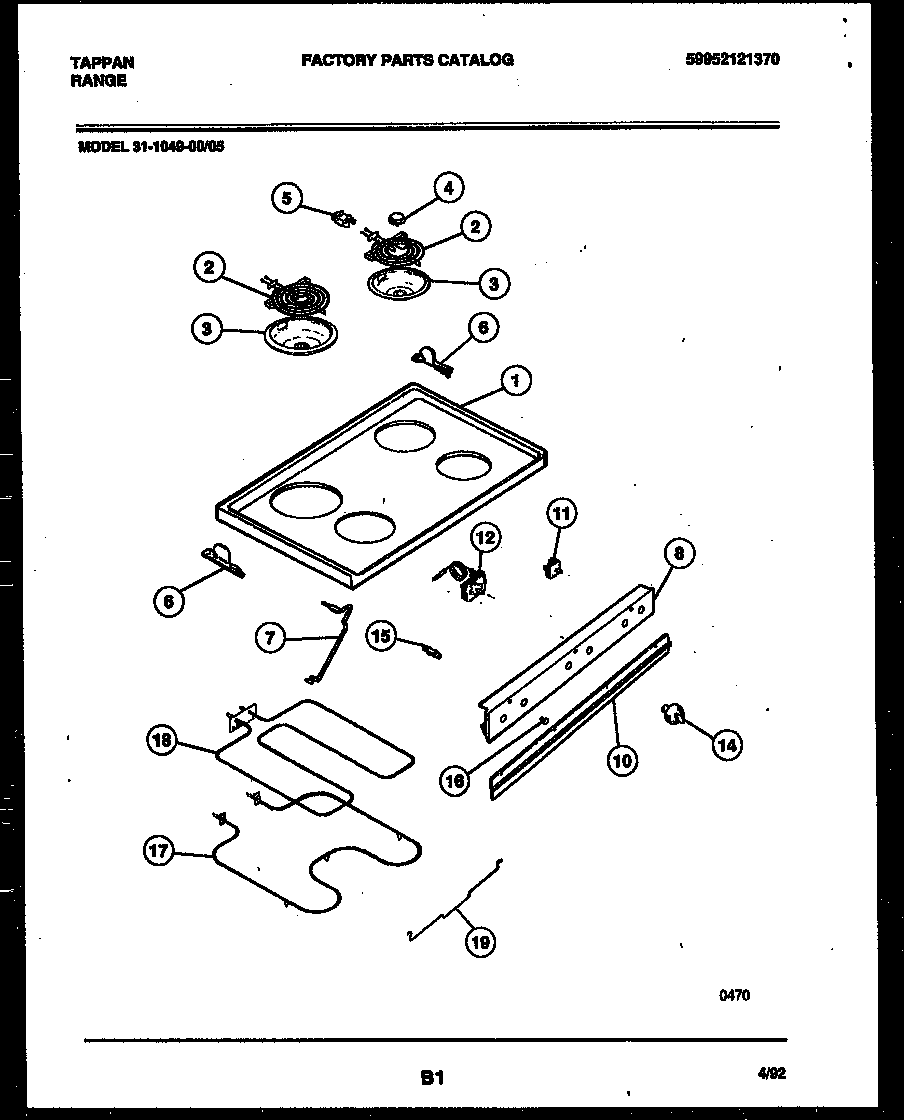

31-1049-00-05 05 – COOKTOP AND BROILER PARTS

31-1049-00-05 05 – COOKTOP AND BROILER PARTS

Written by

in

31-1049-00-05 05 – COOKTOP AND BROILER PARTS

Products

PositionProduct
*50393WCI 19100210058
*50392ANTI-TIP KIT (NOT ILLUSTRATED)
1WCI 3051379
2316442300 Frigidaire Oven 2100W Coil Element 8
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
4MEDALLION, STAINLESS STEEL, SURF ELEM
55303935058 Frigidaire Oven Burner Receptacle Kit
6BRACKET-HINGE,MAIN TOP LH
6ABRACKET-HINGE,MAIN TOP RH
7ROD-MAIN SUPPORT (2)
8WCI 5303211419
10WCI 3204623
11A5303935086 Frigidaire Oven Top Burner Switch Kit
12WCI 5303210266
14AKNOB – THERMOSTAT
14WCI 5303210271
15WCI 5303210270
16JEWEL-IND
17316075103 Frigidaire Oven Bake Element
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
