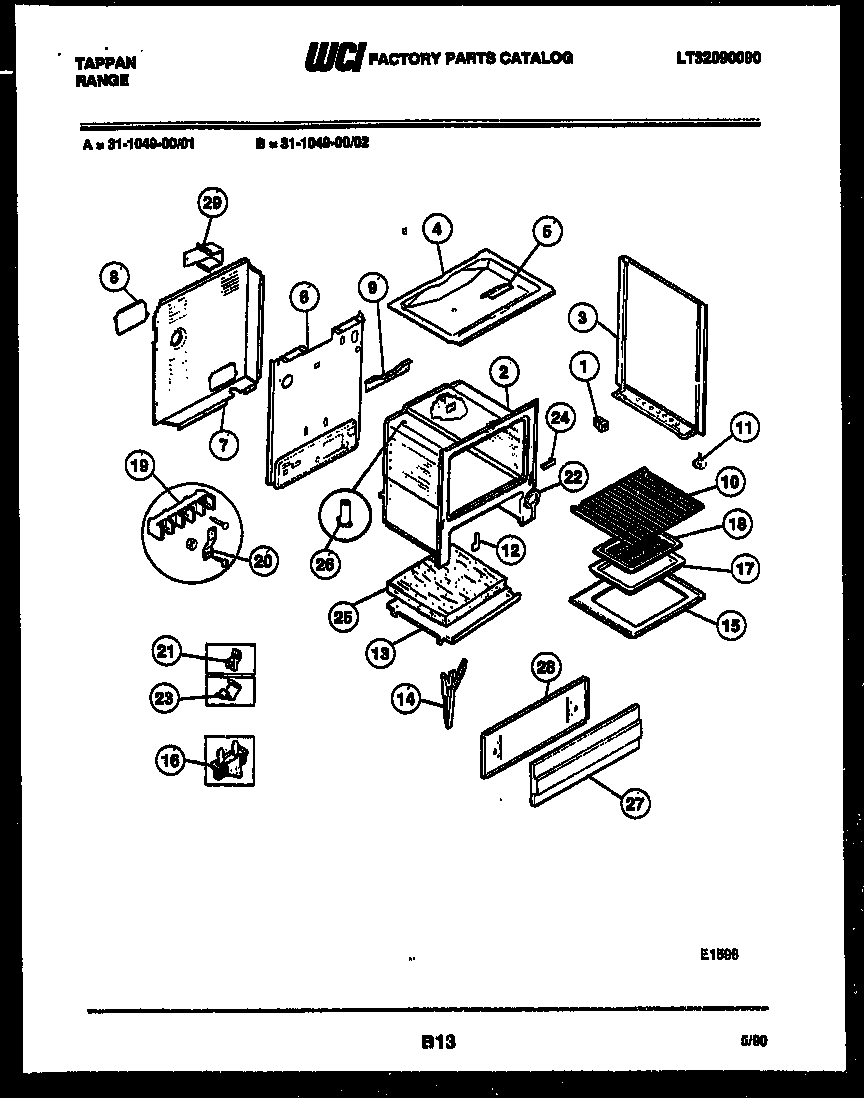

31-1049-23-02 02 – BODY PARTS

Products

PositionProduct
*26343BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3APNL-BODYSIDE RH-ALMOND
3PNL-BODYSIDE LH-ALMOND
4WCI 3017926
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
16FUSE-THERMO CUTOUT
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 08011708
215303284616 Frigidaire Range Bulb Clip Thermostat
223051218 Frigidaire Oven Plate
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26EWCI 08067783
26DSCREW – CHANNEL MTG (NON-ILLUSTRATED)
26C3131903 Frigidaire Door/Drawer Bumper
26BINSUL – OVEN BACK (NON-ILLUSTRATED)
26AINSULATION, OVEN WRAPPER
26WCI 3051344
27PNL – DRAWER (ALMD)
28AWCI 3051387
28SHIELD-PNL
29WCI 3203582
