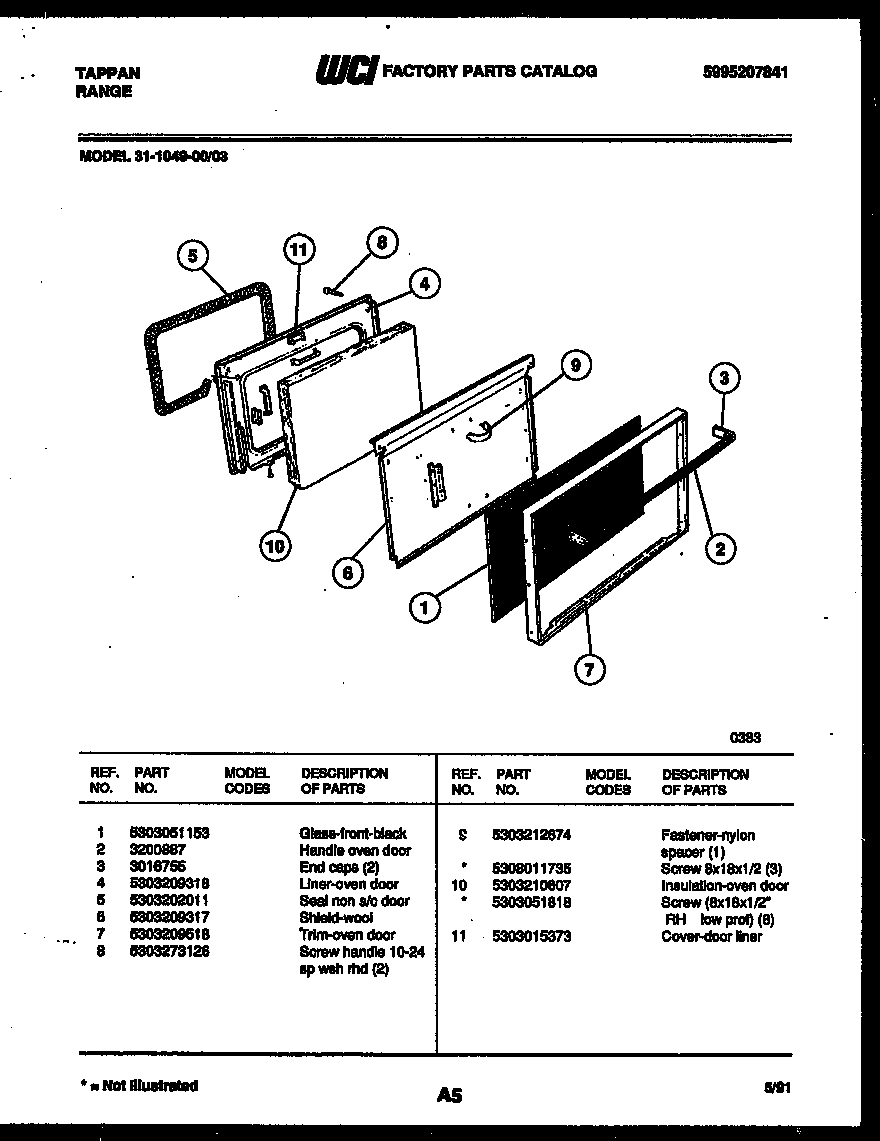

31-1049-23-03 04 – DOOR PARTS

Written by

Products

Position	Product
1	GLASS-FRONT-BLACK
2	HANDLE-OVEN DOOR
3	316137003 Frigidaire Range / Cooktop End Cap
4	LINER-OVEN DOOR
5	5303202011 Frigidaire Door Seal
6	WCI 5303209317
7	WCI 5303209518
8	SCREW-HANDLE 10-24 (2)
9	FSTNR-NYLON SPACER (NON-ILLUSTRATED)
9A	SCREW-DR MTG (3)
10	INSULATION-OVEN DR
10A	5303300265 Frigidaire Oven Screw
11	WCI 5303015373
