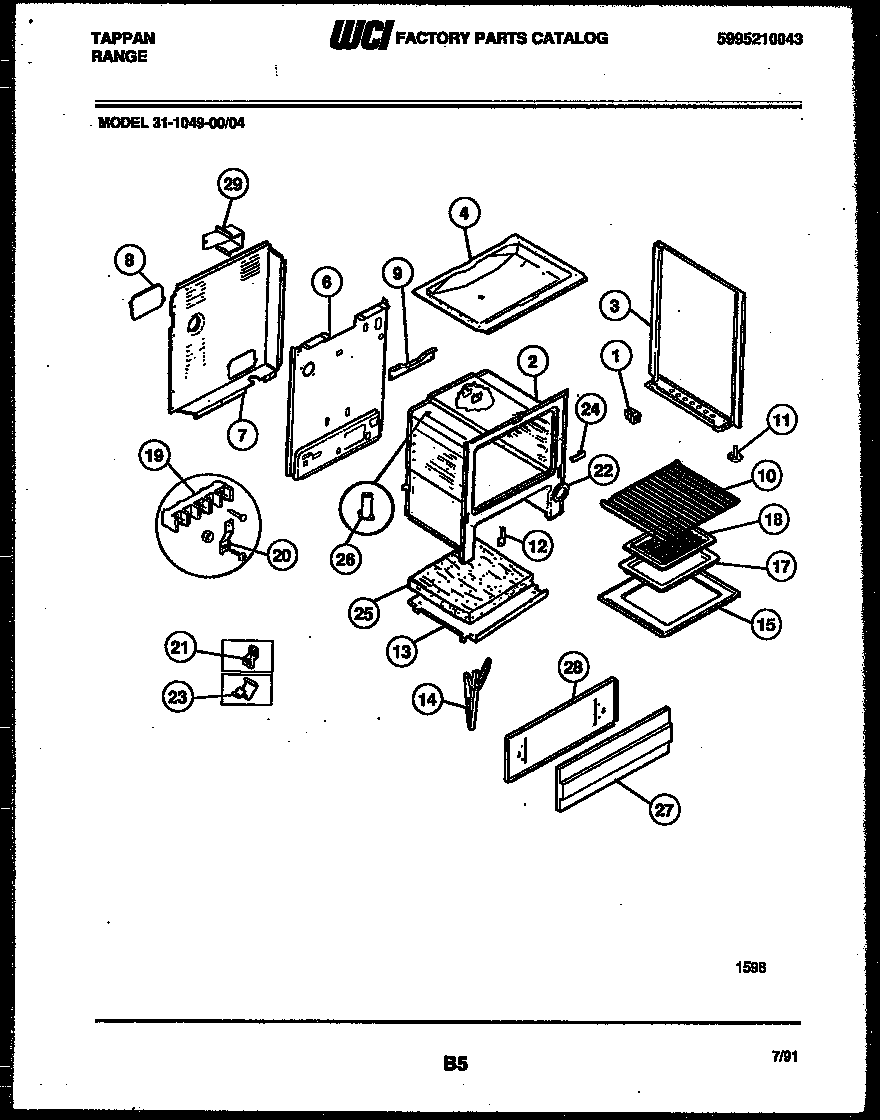

31-1049-23-04 02 – BODY PARTS

Products

PositionProduct
*548473203550 Frigidaire Oven Plug
*54847WCI 5303206618
1SPACER-BODYSIDE, (8)
3AWCI 5303269543
3WCI 5303269545
4WCI 5303271756
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051218 Frigidaire Oven Plate
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26AINSULATION, OVEN WRAPPER
26WCI 3051344
26BINSUL – OVEN BACK (NON-ILLUSTRATED)
26D5303300265 Frigidaire Oven Screw
26C3131903 Frigidaire Door/Drawer Bumper
26E316205500 Frigidaire Oven Nut
27PNL – DRAWER (ALMD)
28SHIELD-PNL
28AWCI 3051387
29WCI 3203582
