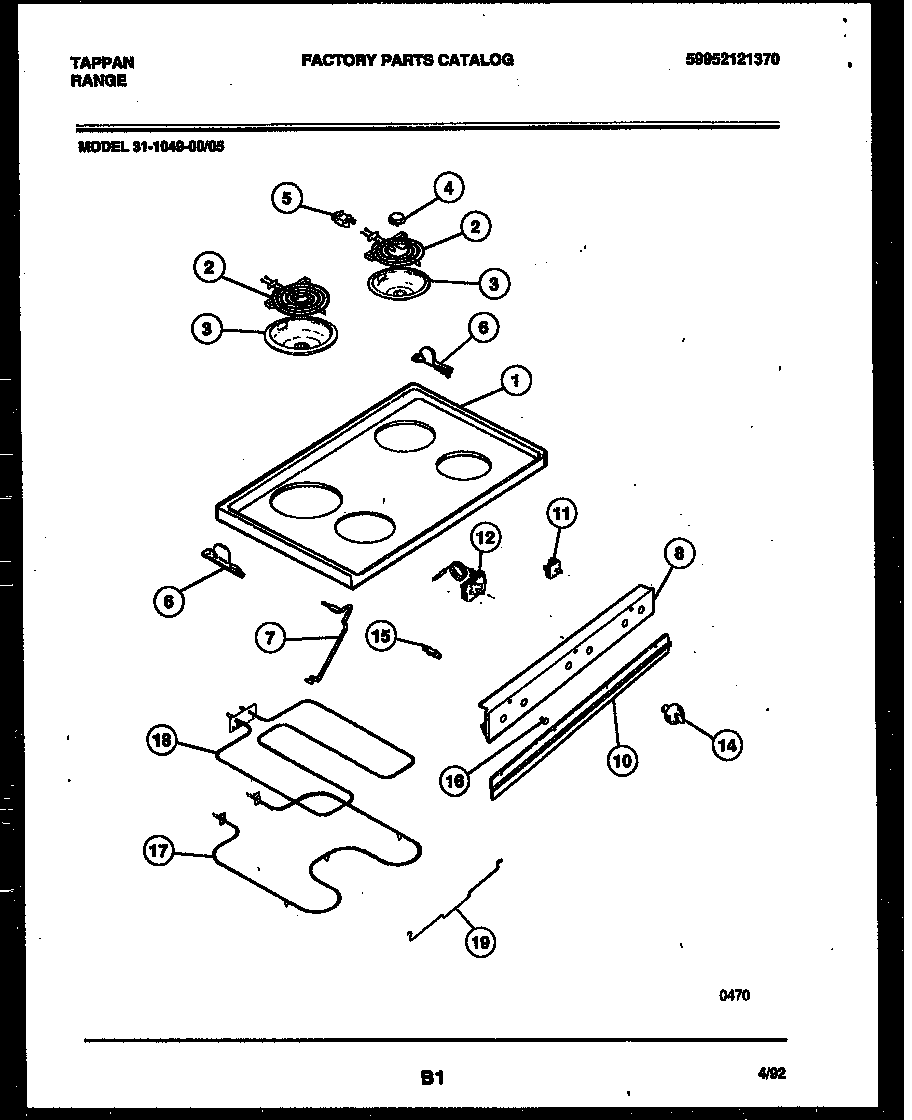

31-1049-23-05 05 – COOKTOP AND BROILER PARTS

Products

Position	Product
*50393	WCI 19100210058
*50392	ANTI-TIP KIT (NOT ILLUSTRATED)
1	WCI 3051380
2	316442300 Frigidaire Oven 2100W Coil Element 8
2A	318372210 Frigidaire Oven Range 6" 1250W Surface Element
3A	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
3	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
4	MEDALLION, STAINLESS STEEL, SURF ELEM
5	5303935058 Frigidaire Oven Burner Receptacle Kit
6	BRACKET-HINGE,MAIN TOP LH
6A	BRACKET-HINGE,MAIN TOP RH
7	ROD-MAIN SUPPORT (2)
8	WCI 5303211419
10	WCI 3204623
11A	5303935086 Frigidaire Oven Top Burner Switch Kit
12	WCI 5303210266
14A	KNOB - THERMOSTAT
14	WCI 5303210271
15	WCI 5303210270
16	JEWEL-IND
17	316075103 Frigidaire Oven Bake Element
18	5303051140 Frigidaire Broil Element
19	316203400 Frigidaire Oven Support
