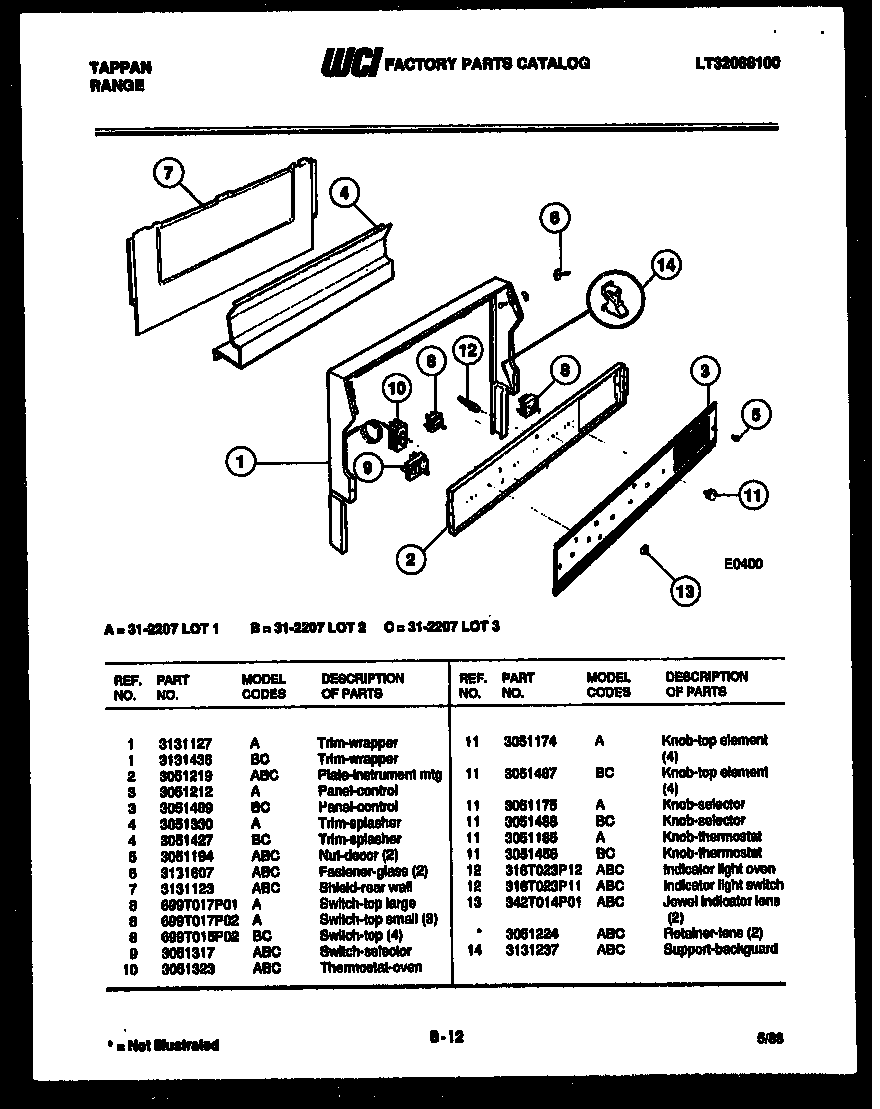

31-2207-00-02 02 – BACKGUARD

31-2207-00-02 02 – BACKGUARD

Written by

in

31-2207-00-02 02 – BACKGUARD

Products

PositionProduct
1WCI 3131436
2PLATE-INSTR MTG
3BUTTON-ELECT CLOCK (4)
4WCI 3051427
5NUT – DECOR (2)
6FASTENER, GLASS (2)
7SHIELD-BACKGUARD,REAR WALL
8SWITCH S/U (4)
9WCI 3051317
10WCI 3051323
11WCI 3051488
11KNOB-THERMO.
11KNOB-TOP ELM (4)
12INDICATOR-LITE OVN
12INDICATOR LIGHT (4)
13LENS-IND LIGHT (2)
13ARETAINER-LENS
14SUPPORT-BACKGUARD (2)
