31-2208-66-03 02 – BODY PARTS

31-2208-66-03 02 – BODY PARTS

Written by

in

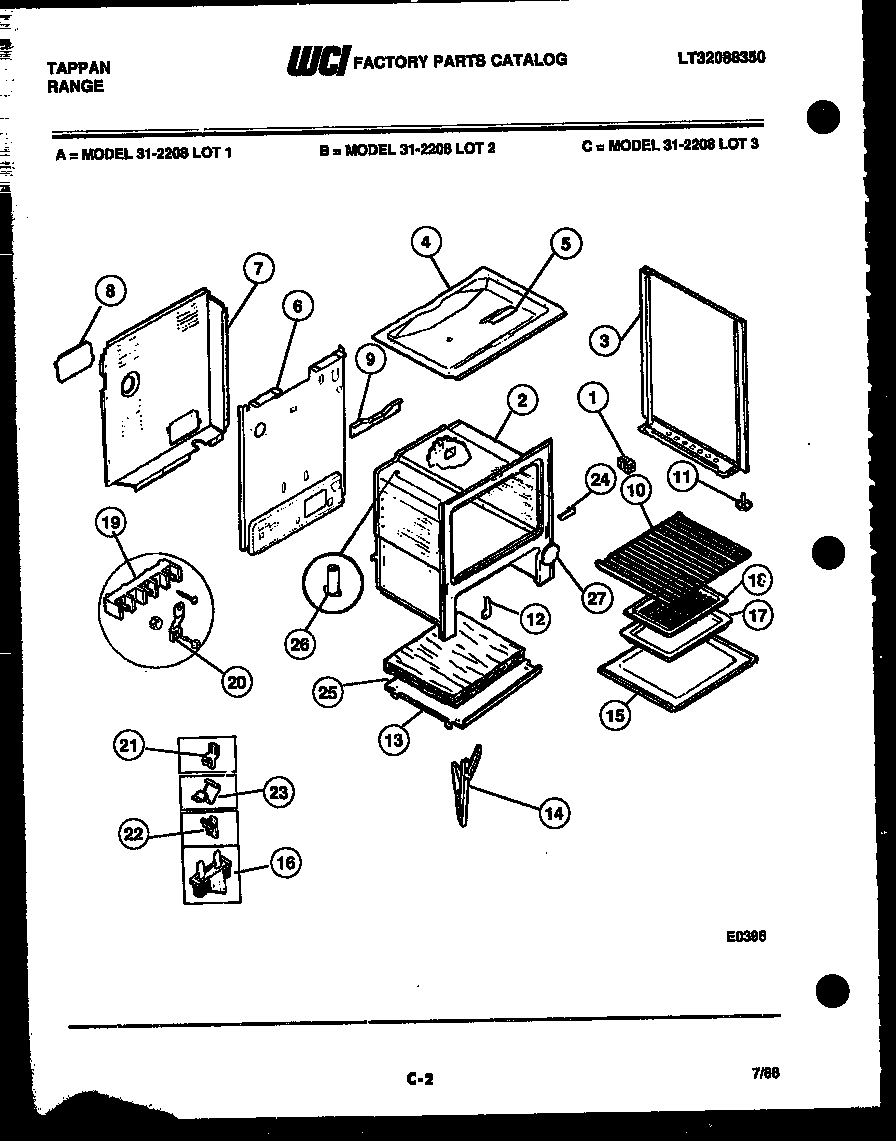

31-2208-66-03 02 – BODY PARTS

Products

PositionProduct
*54559INSULATION-BACK (NON-ILLUSTRATED)
*54560SCREW-HNG MTG (6) (NON-ILLUSTRATED)
*54561NUT-HEX BRASS (6) (NON-ILLUSTRATED)
*54558WCI 3131201
*545603131903 Frigidaire Door/Drawer Bumper
1WCI 665T188P02
3PNL. B/S (LH WEAT)
3APNL. B/S (RH WEAT)
4WCI 3017926
6WCI 3131567
7WCI 3051400
8CVR-LWR ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11WCI 636M004P01
12WCI 3131570
13WCI 3051398
14CHANL-DR HNG (2)
15WCI 3051104
16FUSE-THERMO CUTOUT
17PAN, BROILER
18WCI 3131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 711T048P01
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER FRNT MAIN (NON-ILLUSTRATED)
25316403803 Frigidaire Insulation
26WCI 3051344
273051218 Frigidaire Oven Plate
