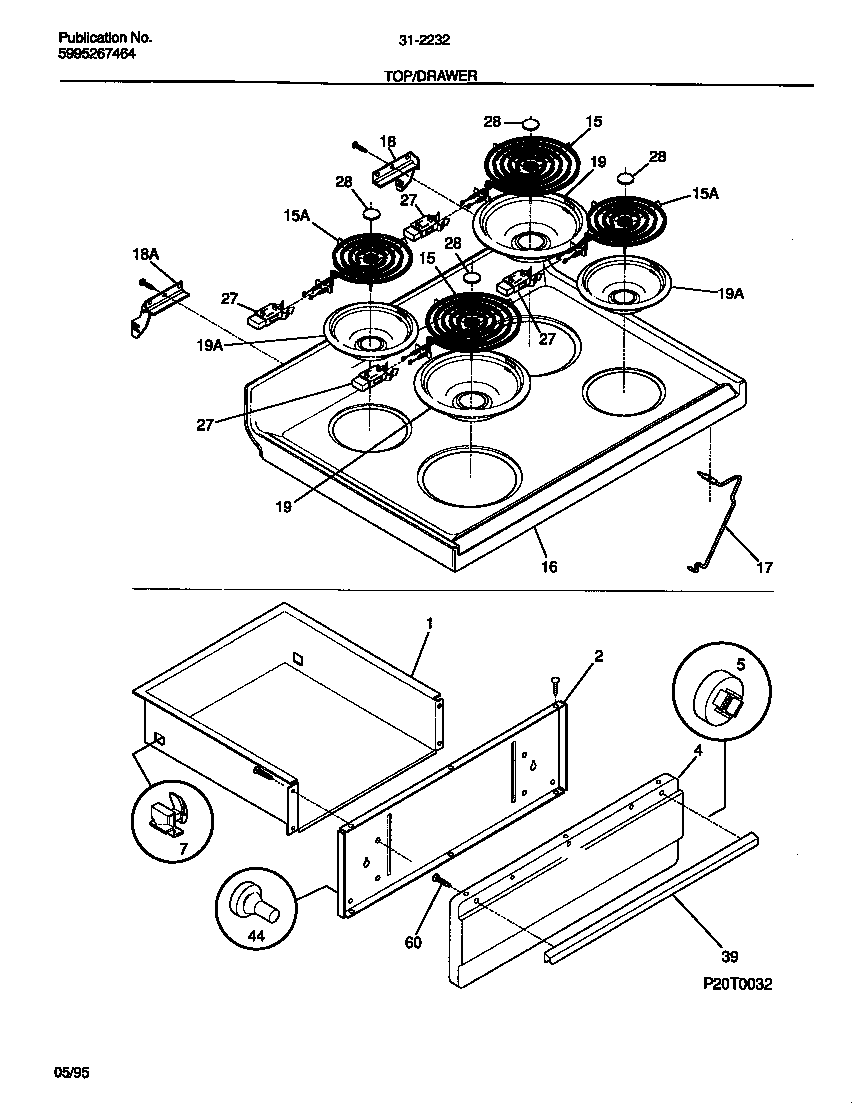

31-2232-23-02 04 – TOP/DRAWER

Products

Position	Product
*51168	WCI 5303281379
*51167	316058601 Frigidaire Oven Clip
*51169	WCI 5303281584
*51170	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	5308011964 Frigidaire Surface Element P1
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18A	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19A	L304430992 Frigidaire 6" Drip Bowl Chrome FM
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
39	HANDLE-DRAWER, ALMOND
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
