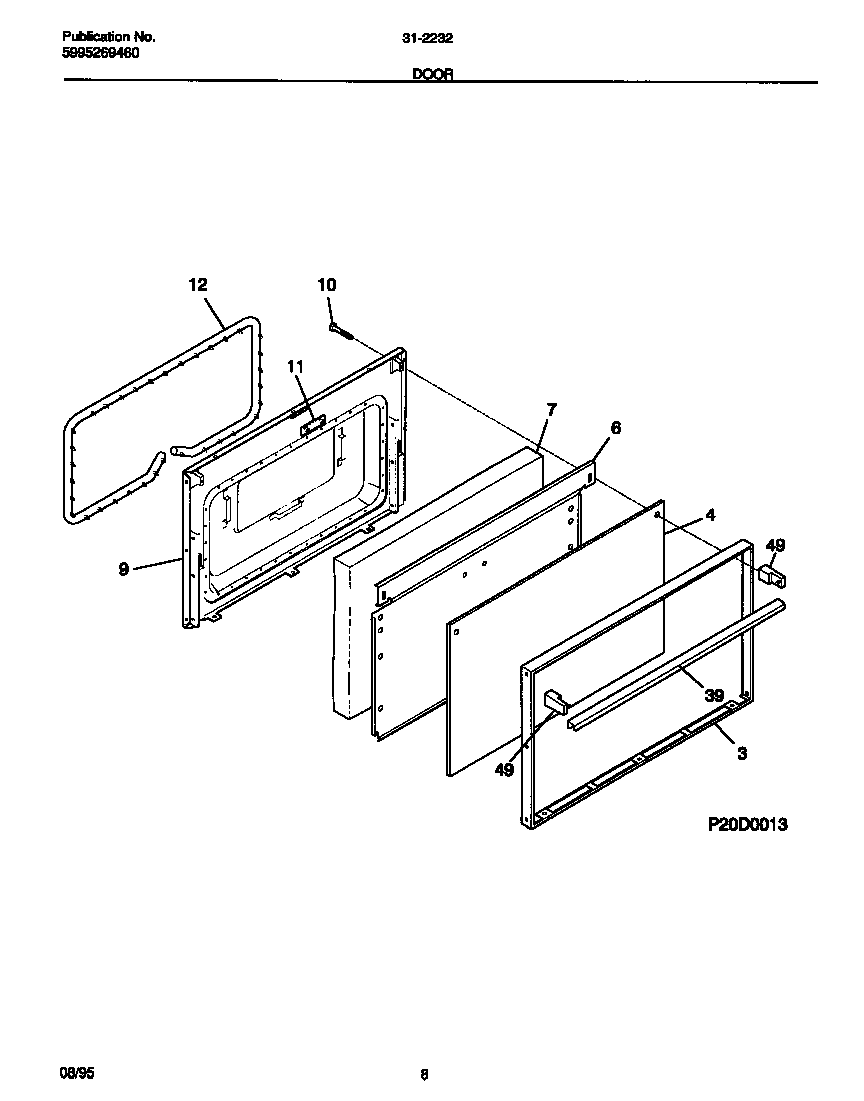

31-2232-23-03 05 – DOOR

31-2232-23-03 05 – DOOR

Written by

in

31-2232-23-03 05 – DOOR

Products

PositionProduct
*40131SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*40133WCI 5303269859
*401325303300265 Frigidaire Oven Screw
*401345303285179 Frigidaire Oven Door Screw
*40130WCI 316071600
3WCI 316067802
4GLASS-FRONT-BLACK
6WCI 5303209317
7WCI 316076401
9WCI 316066602
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11WCI 5303015373
125303202011 Frigidaire Door Seal
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
