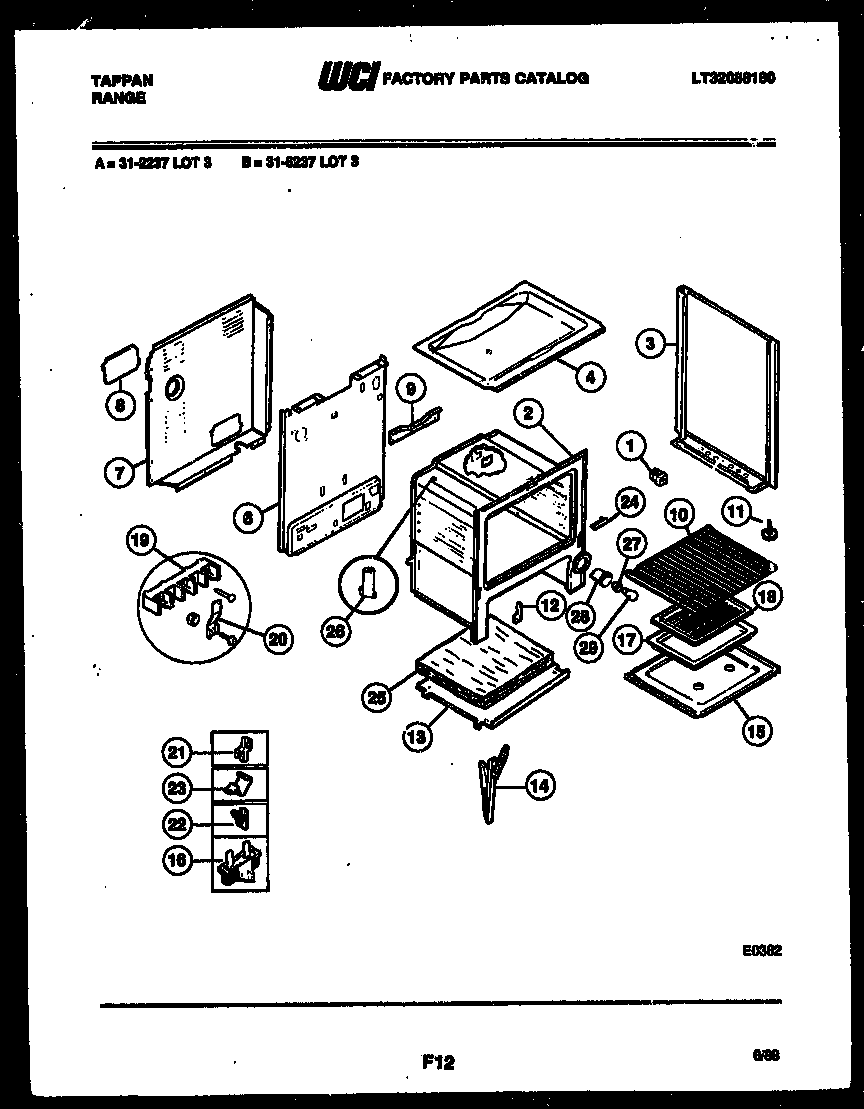

31-2237-66-03 03 – BODY PARTS

Products

Position	Product
*12850	3131903 Frigidaire Door/Drawer Bumper
*12850	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
*12850	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
*12850	INSULATION-BACK (NON-ILLUSTRATED)
*12850	WCI 3131201
1	WCI 665T188P02
3	PNL. B/S (LH WEAT)
3A	PNL. B/S (RH WEAT)
4	WCI 3017926
6	WCI 021T055F02-18
7	WCI 3051400
8	WCI 3051408
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	COVER-HINGE (2)
13	WCI 3051398
14	WCI 3131243
15	WCI 3051104
16	FUSE-THERMO CUTOUT
17	PAN, BROILER
18	INSERT-BROILR PAN LOT 2,3
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	COVER-FRONT
25	316403803 Frigidaire Insulation
26	WCI 3051344
27	WCI 622T042P01
28	TUBE-OVEN LIGHT
29	316538904 Frigidaire Oven Lamp Light
