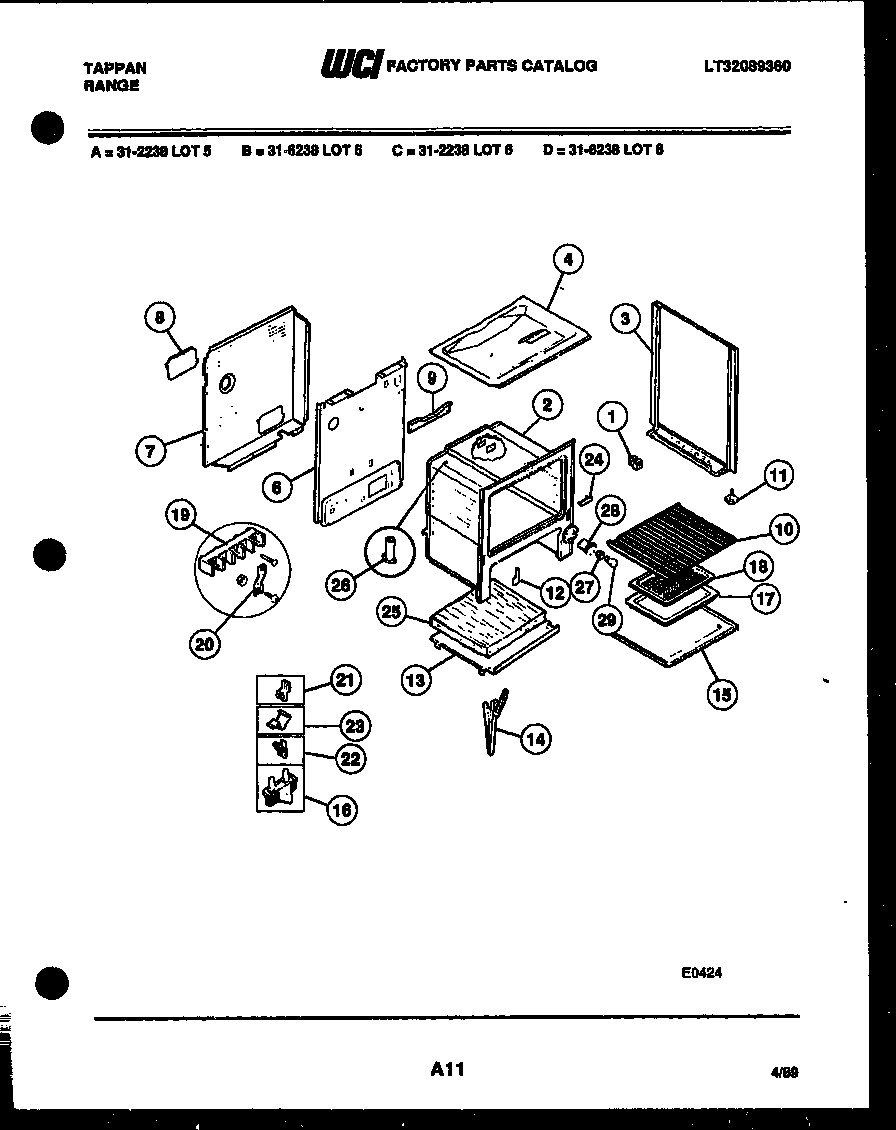

31-2238-00-06 02 – BODY PARTS

31-2238-00-06 02 – BODY PARTS

Written by

in

31-2238-00-06 02 – BODY PARTS

Products

PositionProduct
*20296NUT-HEX BRASS (6) (NON-ILLUSTRATED)
*202963131903 Frigidaire Door/Drawer Bumper
*20296SCREW-HNG MTG (6) (NON-ILLUSTRATED)
*20295WCI 3131201
*20295INSULATION-BACK (NON-ILLUSTRATED)
1WCI 665T188P02
3B/S-LH-(WHITE)
3AB/S-RH-(WHITE)
4WCI 3017926
6WCI 3131567
7WCI 3051400
8COVER, LOWER ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11WCI 636M004P01
12COVER-HINGE (2)
13SHIELD, OVEN BOTTOM
14WCI 3131243
15WCI 3051104
16FUSE-THERMO CUTOUT
17PAN, BROILER
18INSERT-BROILR PAN LOT 2,3
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 711T048P01
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-FRONT
25316403803 Frigidaire Insulation
26WCI 3051344
27316116400 Frigidaire Oven Light Socket
28TUBE-OVEN LIGHT
29316538904 Frigidaire Oven Lamp Light
