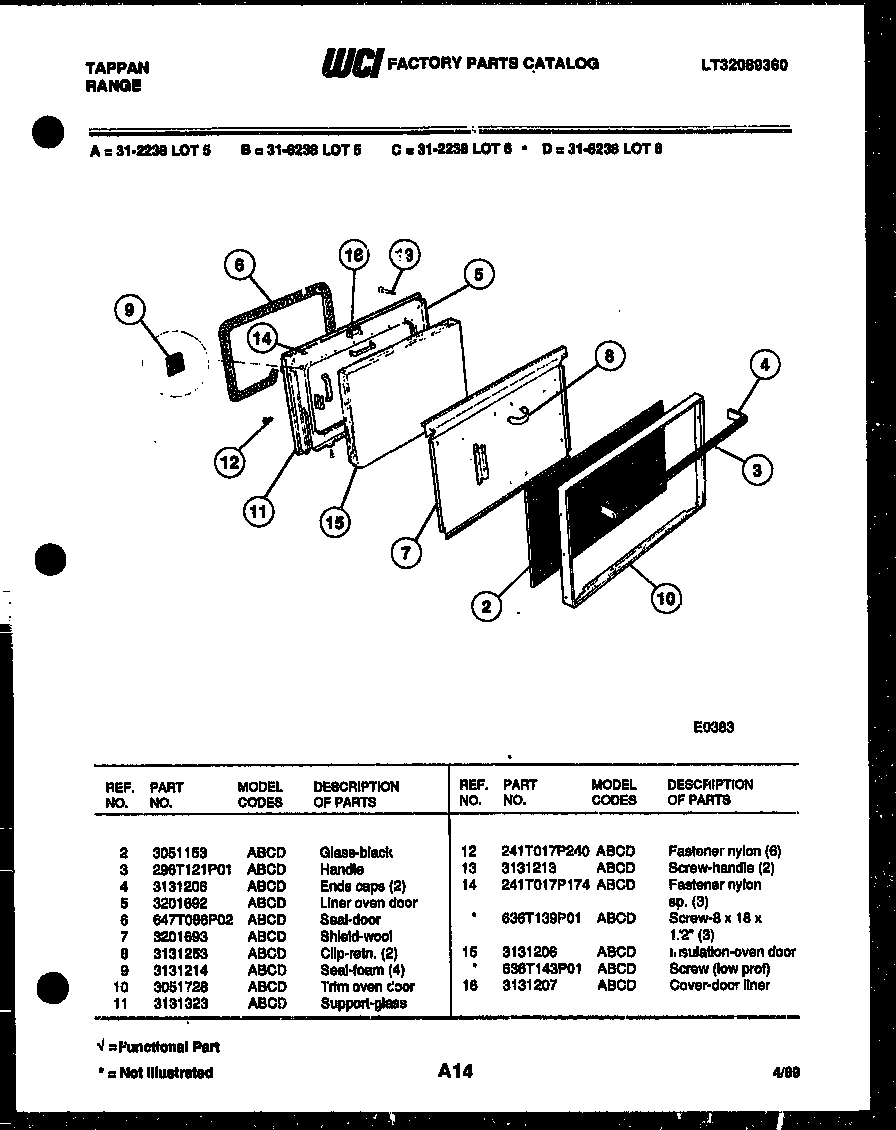

31-2238-00-06 04 – DOOR PARTS

Products

Position	Product
2	GLASS-FRONT BLACK
3	WCI 296T121P01
5	WCI 3201692
6	5303202011 Frigidaire Door Seal
7	WCI 3201693
8	WCI 3131253
9	SEAL, FOAM (4)
10	WCI 3051728
11	SUPPORT, GLASS
12	FASTNR-NYLN SPACR 3/32“ (5)
13	SCREW HANDL (2)
14A	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
14	FASTNR-NYLON PUSH-IN SPACR (5)
15	316137003 Frigidaire Range / Cooktop End Cap
15A	5303300265 Frigidaire Oven Screw
16	COVER DOOR LINER (NON-ILLUSTRATED)
