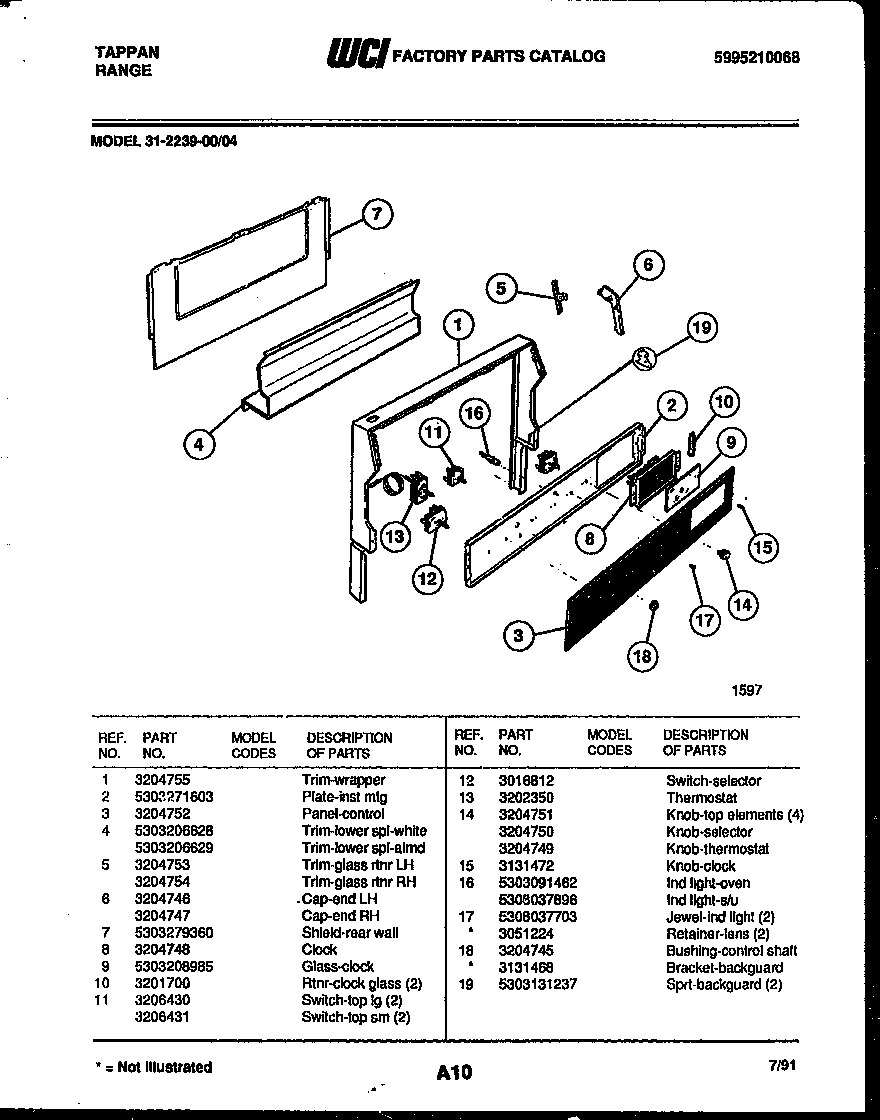

31-2239-00-04 02 – BACKGUARD

31-2239-00-04 02 – BACKGUARD

Written by

in

31-2239-00-04 02 – BACKGUARD

Products

PositionProduct
1WCI 3204755
2PLATE-INSTR MTG
3WCI 3204752
4WCI 5303206629
4WCI 5303206628
5TRIM-GLASS RETAINER,LH
5ATRIM-GLASS RETAINER,RH
6AWCI 3204747
6WCI 3204746
7WCI 5303279360
8WCI 3204748
9LENS-CLOCK, GLASS
10RETAINER, CLOCK GLASS, (2)
115303935086 Frigidaire Oven Top Burner Switch Kit
12WCI 3016812
13WCI 3202350
14AWCI 3204750
14WCI 3204751
14BWCI 3204749
15KNOB-CLOCK
16IND LIGHT-250V (2)
16AWCI 5308037896
17ARETAINER-LENS
17JEWEL LENS-AMBER
18AWCI 3131468
18WCI 3204745
19SUPPORT-BACKGUARD,(2)
