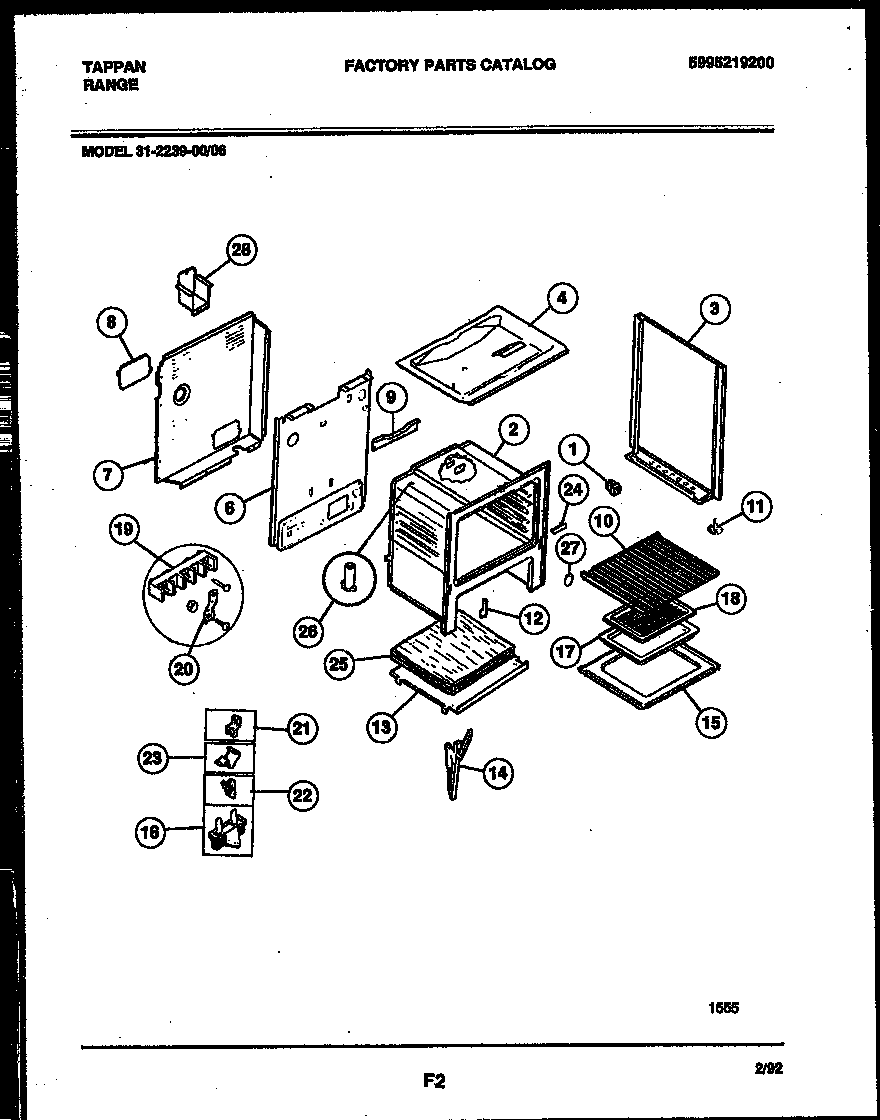

31-2239-00-06 04 – BODY PARTS

31-2239-00-06 04 – BODY PARTS

Written by

in

31-2239-00-06 04 – BODY PARTS

Products

PositionProduct
*664355303300265 Frigidaire Oven Screw
*66435WCI 5303206618
*66435INSULATION, OVEN WRAPPER
*66435INSUL – OVEN BACK (NON-ILLUSTRATED)
*664353131903 Frigidaire Door/Drawer Bumper
*66435ANTI-TIP KIT (NOT ILLUSTRATED)
*66435WCI 19100210118
*664353203550 Frigidaire Oven Plug
*66435316205500 Frigidaire Oven Nut
1SPACER-BODYSIDE, (8)
3PNL-B/S-LH-WHITE
3APNL-B/S-RH-WHITE
4WCI 5303271756
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14Hinge,oven door ,(2)
15PANEL-OVEN BOTTOM
16FUSE-THERMO CUTOUT
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 5303283907
273051218 Frigidaire Oven Plate
28WCI 3203582
