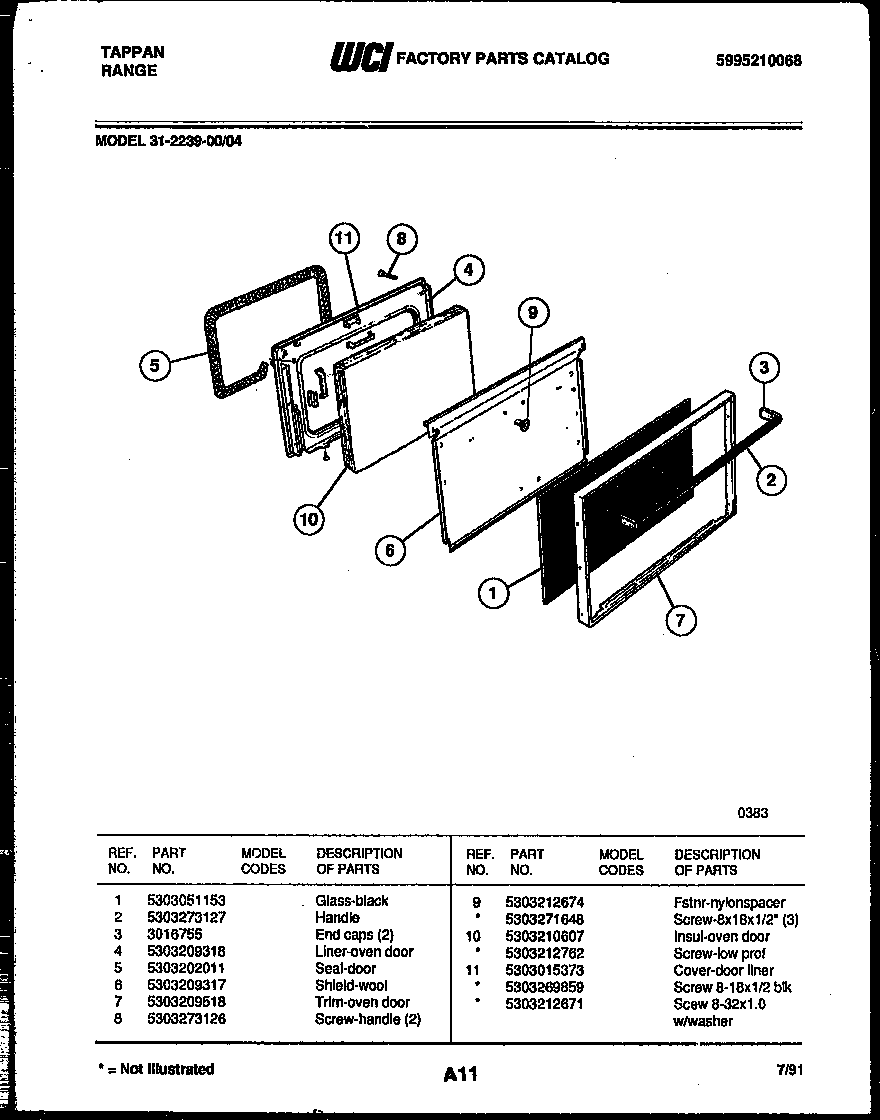

31-2239-23-04 03 – DOOR PARTS

31-2239-23-04 03 – DOOR PARTS

Written by

in

31-2239-23-04 03 – DOOR PARTS

Products

PositionProduct
*53943SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*53942WCI 5303269859
1GLASS-FRONT-BLACK
2HANDLE-DOOR, OVEN
3316137003 Frigidaire Range / Cooktop End Cap
4LINER-OVEN DOOR
55303202011 Frigidaire Door Seal
6WCI 5303209317
7WCI 5303209518
8SCREW-HANDLE 10-24 (2)
9A5303271648 Frigidaire Oven Screw
9FSTNR-NYLON SPACER (NON-ILLUSTRATED)
10INSULATION-OVEN DR
10A5303300265 Frigidaire Oven Screw
11WCI 5303015373
