31-2239-23-04 04 – BODY PARTS

31-2239-23-04 04 – BODY PARTS

Written by

in

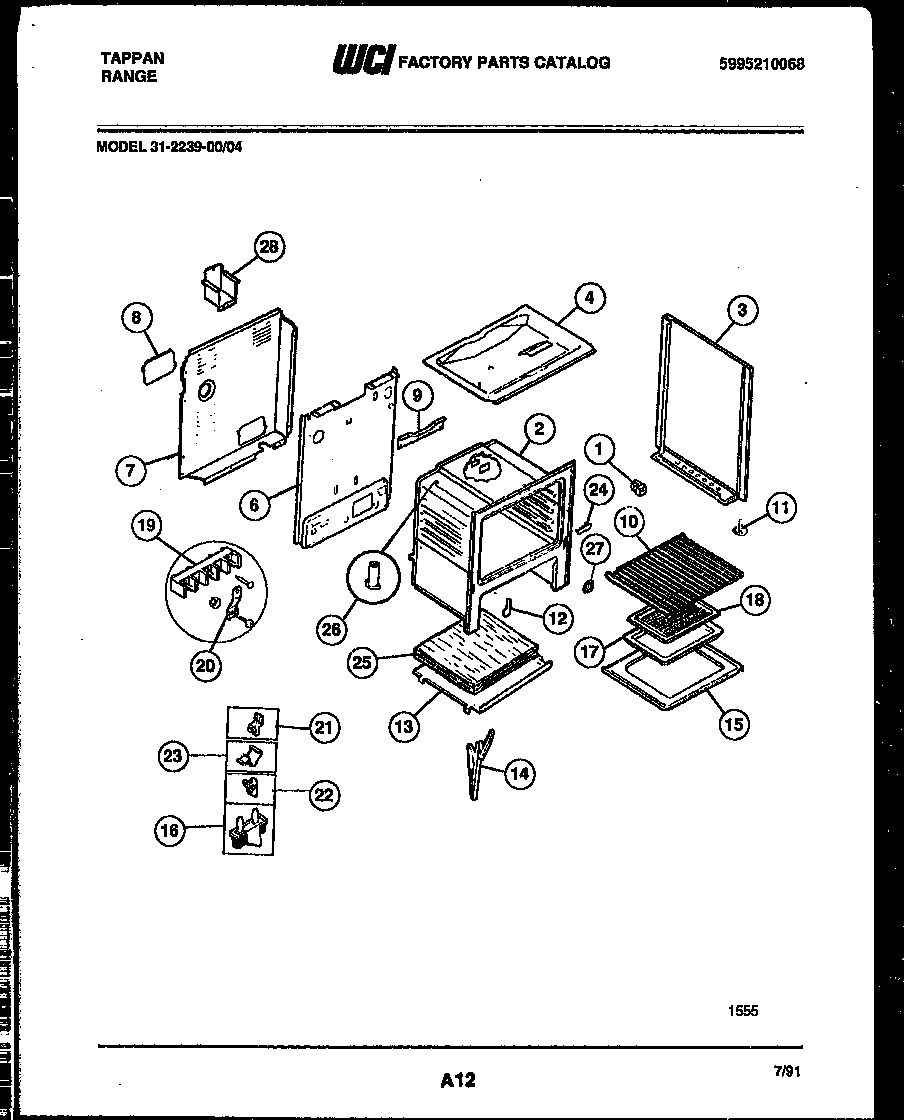

31-2239-23-04 04 – BODY PARTS

Products

PositionProduct
*539465303300265 Frigidaire Oven Screw
*53946WCI 5303206618
*53946INSULATION, OVEN WRAPPER
*53946INSUL – OVEN BACK (NON-ILLUSTRATED)
*539463131903 Frigidaire Door/Drawer Bumper
*53946ANTI-TIP KIT (NOT ILLUSTRATED)
*53947WCI 19100180314
*539473203550 Frigidaire Oven Plug
*53946316205500 Frigidaire Oven Nut
1SPACER-BODYSIDE, (8)
3WCI 5303269545
3AWCI 5303269543
4WCI 5303271756
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
16FUSE-THERMO CUTOUT
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 3051344
273051218 Frigidaire Oven Plate
28WCI 3203582
