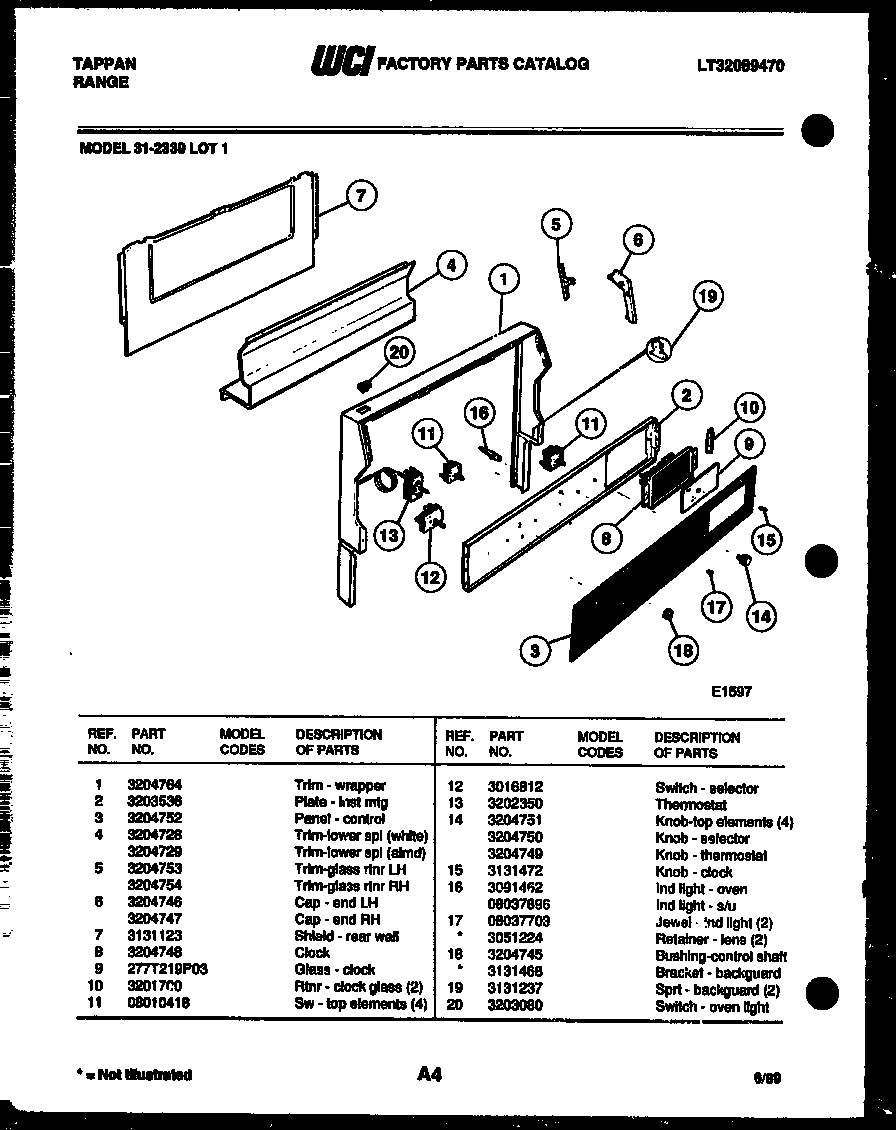

31-2339-00-01 03 – BACKGUARD

31-2339-00-01 03 – BACKGUARD

Written by

in

31-2339-00-01 03 – BACKGUARD

Products

PositionProduct
1WCI 3204764
2PLATE-INSTRUMENT MTG
3WCI 3204752
4WCI 3204728
5ATRIM-GLASS RETAINER,RH
5TRIM-GLASS RETAINER,LH
6AWCI 3204747
6WCI 3204746
7SHIELD-BACKGUARD,REAR WALL
8WCI 3204748
9GLASS-CLOCK
10RETAINER, CLOCK GLASS, (2)
11WCI 08010418
12WCI 3016812
13WCI 3202350
14WCI 3204751
14AWCI 3204750
14BWCI 3204749
15KNOB-CLOCK
16ALIGHT – IND 125 V (2)
16INDICATOR LIGHT-250V (2)
17WCI 08037703
17ARETAINER-LENS
18AWCI 3131468
18WCI 3204745
19SUPPORT-BACKGUARD (2)
205308015487 Frigidaire Switch-Oven Light
