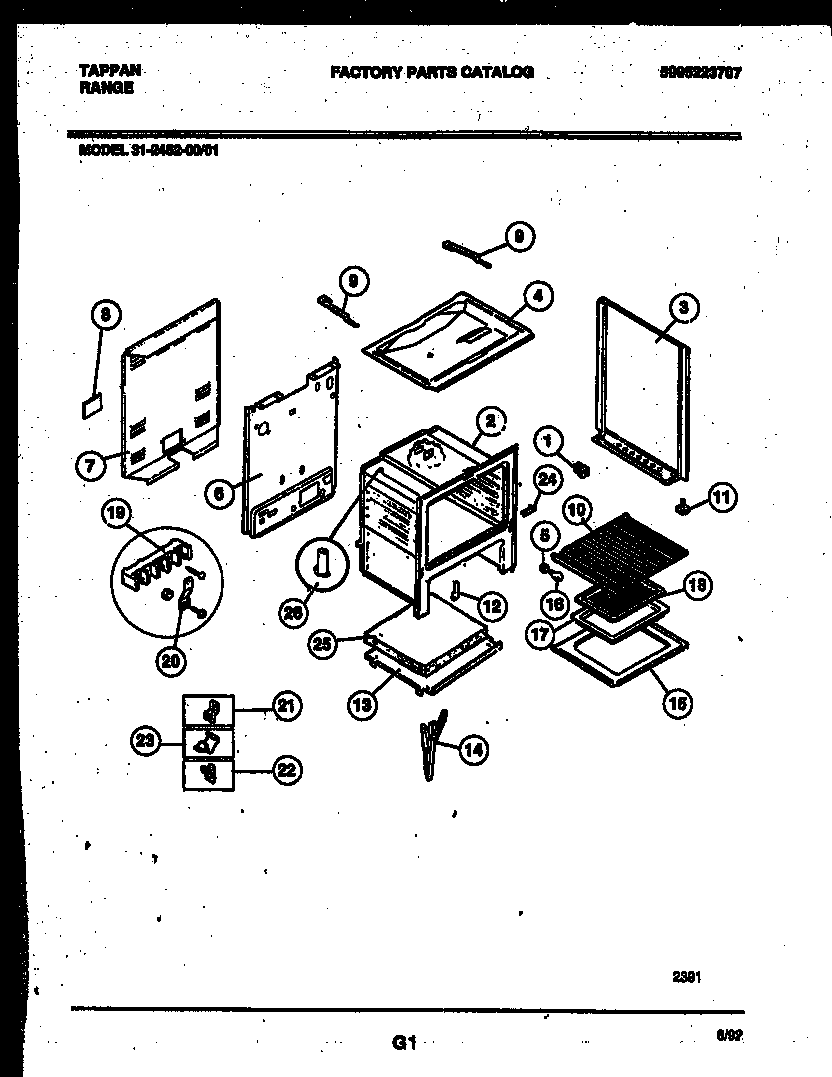

31-2452-00-01 04 – BODY PARTS

31-2452-00-01 04 – BODY PARTS

Written by

in

31-2452-00-01 04 – BODY PARTS

Products

PositionProduct
*728525303300265 Frigidaire Oven Screw
*72853WCI 5303206618
*72852INSULATION, OVEN WRAPPER
*72852INSUL – OVEN BACK (NON-ILLUSTRATED)
*728523131903 Frigidaire Door/Drawer Bumper
*72852ANTI-TIP KIT (NOT ILLUSTRATED)
*72853WCI 316002001
*728533203550 Frigidaire Oven Plug
*72852316205500 Frigidaire Oven Nut
1SPACER-BODYSIDE, (8)
3PNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
4WCI 5303271756
5316116400 Frigidaire Oven Light Socket
6BACK-MAIN, AUTOLATCH
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9BRACKET-HINGE, MAIN TOP, LH
9BRACKET-HINGE, MAIN TOP RH
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14Hinge,oven door ,(2)
15PANEL-OVEN BOTTOM
16316538904 Frigidaire Oven Lamp Light
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 5303283907
