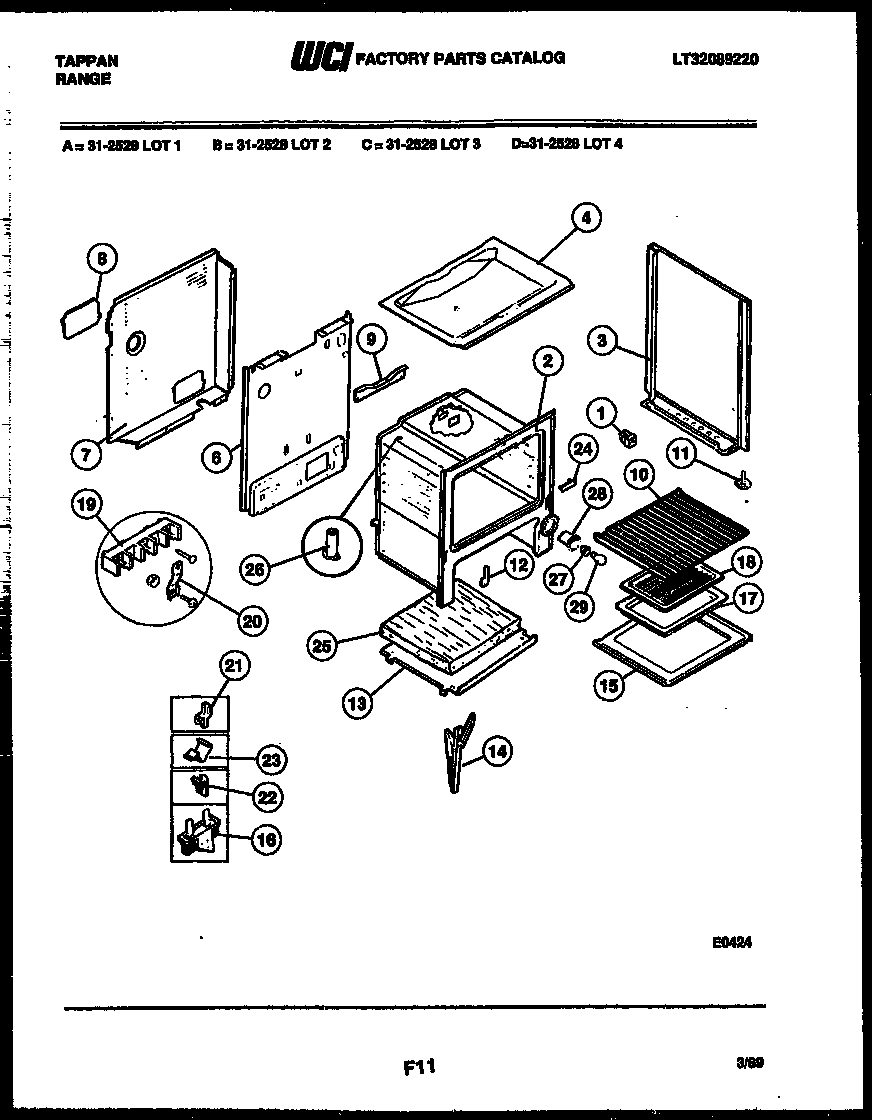

31-2528-00-01 02 – BODY PARTS

31-2528-00-01 02 – BODY PARTS

Written by

in

31-2528-00-01 02 – BODY PARTS

Products

PositionProduct
*960433131903 Frigidaire Door/Drawer Bumper
*96045NUT-HEX BRASS (6) (NON-ILLUSTRATED)
*96044SCREW-HNG MTG (6) (NON-ILLUSTRATED)
*96043INSULATION-BACK (NON-ILLUSTRATED)
*96042WCI 3131201
1WCI 665T188P02
3PNL. B/S (LH WHITE)
3APNL. B/S (RH WHITE)
4WCI 3017926
6WCI 021T055F02-18
7WCI 3051400
8WCI 3051408
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11WCI 636M004P01
12COVER-HINGE (2)
13WCI 3051398
14WCI 3131243
15WCI 3051104
16FUSE-THERMO CUTOUT
17PAN, BROILER
18INSERT-BROILR PAN LOT 2,3
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 711T048P01
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-FRONT
25316403803 Frigidaire Insulation
26WCI 3051344
27316116400 Frigidaire Oven Light Socket
28TUBE-OVEN LIGHT
29316538904 Frigidaire Oven Lamp Light
