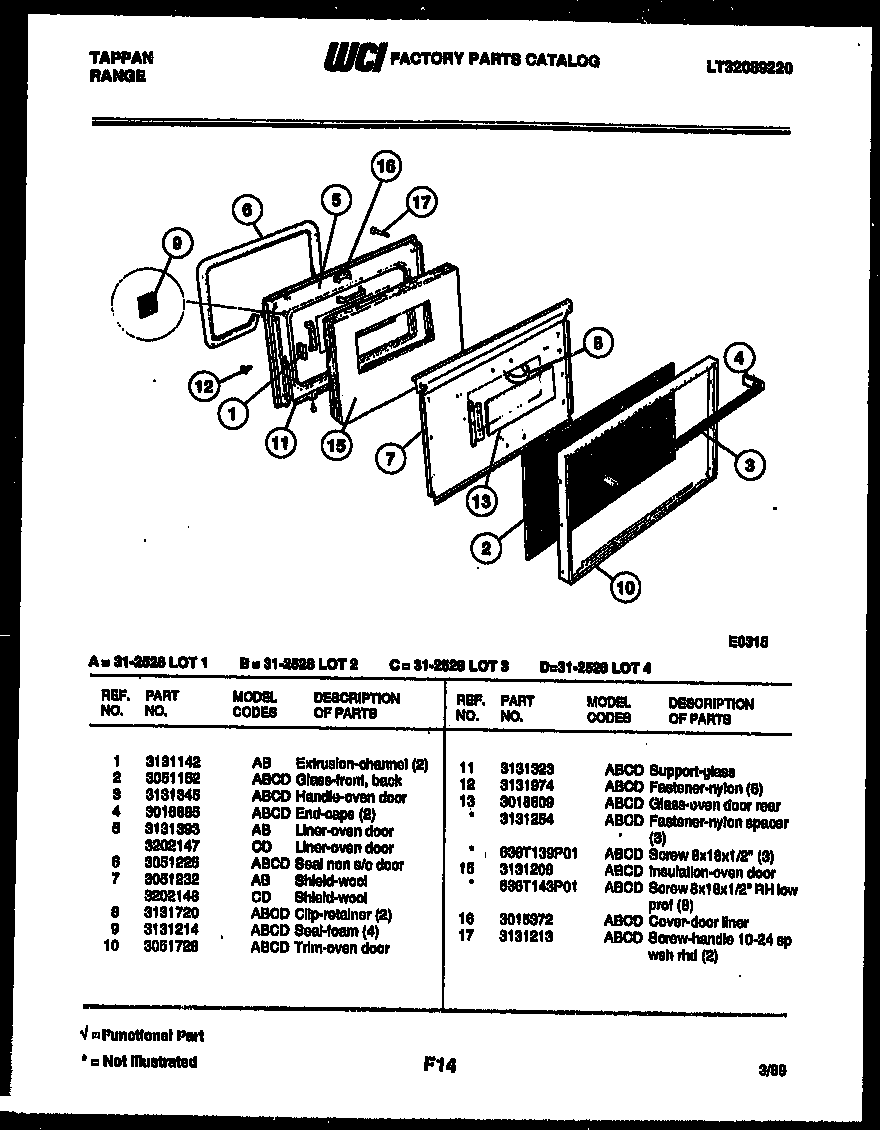

31-2528-00-02 04 – DOOR PARTS

Products

Position	Product
1	EXTRUSION-CHANNL
2	GLASS-OVEN DOOR, BLACK, OUTER
3	HANDLE
4	316137003 Frigidaire Range / Cooktop End Cap
5	WCI 3131393
6	5303202011 Frigidaire Door Seal
7	WCI 3051232
8	CLIP-RETAINING
9	SEAL, FOAM (4)
10	WCI 3051728
11	SUPPORT, GLASS
12	FSTNR. SPACER (6)
13B	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
13A	CLIP
13	GLASS-OV DR (REAR)
15A	5303300265 Frigidaire Oven Screw
15	INSUL. OVEN DR
16	COVER-BURNER BOX
17	SCREW HANDL (2)
