31-2538-23-04 06 – DOOR PARTS

31-2538-23-04 06 – DOOR PARTS

Written by

in

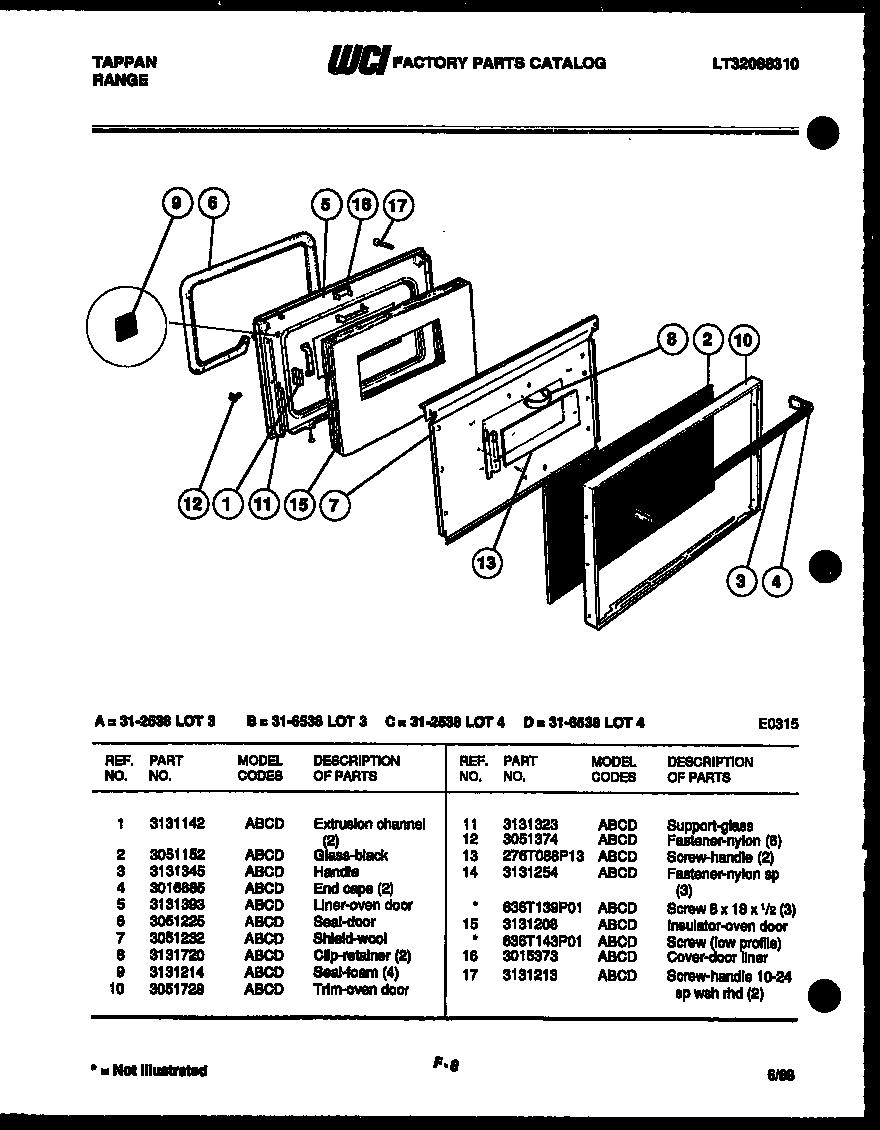

31-2538-23-04 06 – DOOR PARTS

Products

PositionProduct
1EXTRUSION-CHANNL
2GLASS-OVEN DOOR, BLACK, OUTER
3HANDLE
4316137003 Frigidaire Range / Cooktop End Cap
5WCI 3131393
65303202011 Frigidaire Door Seal
7WCI 3051232
8CLIP-RETAINING
9SEAL, FOAM (4)
10WCI 3051728
11SUPPORT, GLASS
12FASTNR-SPACER (6)
13OVEN GLASS-REAR
14CLIP
14ASCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
15INSUL. OVEN DR
15A5303300265 Frigidaire Oven Screw
16WCI 3015373
17SCREW HANDL (2)
