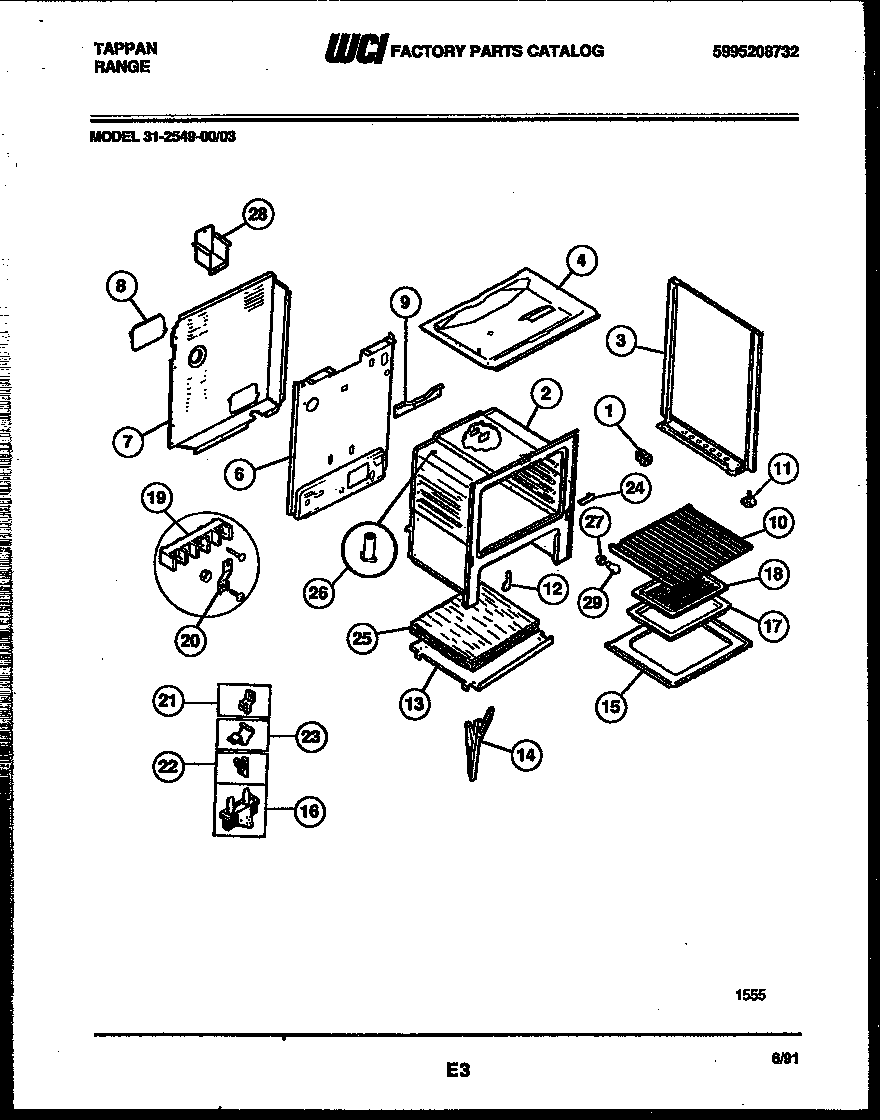

31-2549-00-03 02 – BODY PARTS

Products

PositionProduct
*52610WCI 19100180314
*52609ANTI-TIP KIT (NOT ILLUSTRATED)
*526093131903 Frigidaire Door/Drawer Bumper
*52609INSUL – OVEN BACK (NON-ILLUSTRATED)
*52609316205500 Frigidaire Oven Nut
*52610FASTNR-LEVEL LEG (4)
*52609INSULATION, OVEN WRAPPER
*526103203550 Frigidaire Oven Plug
*52610WCI 5303206618
*52609SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3WCI 5303269545
3AWCI 5303269543
3APNL-B/S-RH-WHITE
3PNL-B/S-LH-WHITE
4WCI 5303271756
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
16FUSE-THERMO CUTOUT
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26WCI 3051344
27316116400 Frigidaire Oven Light Socket
28WCI 3203582
29316538904 Frigidaire Oven Lamp Light
