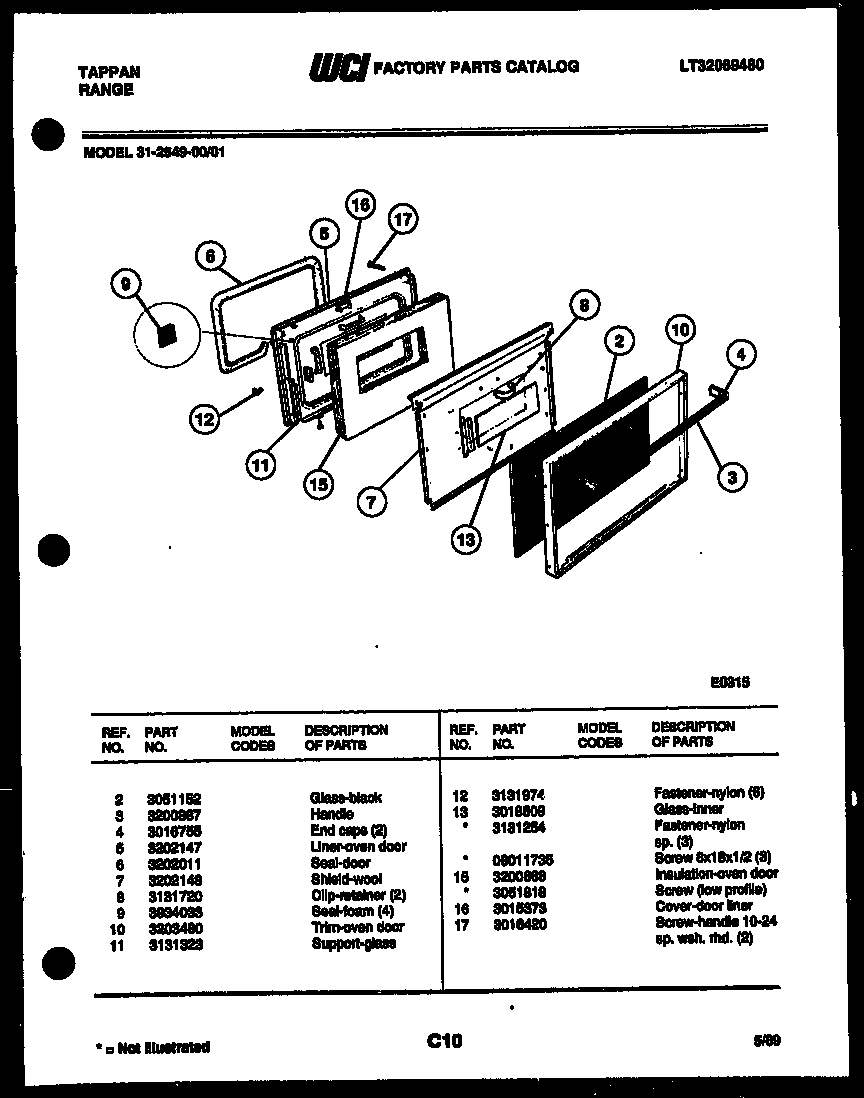

31-2549-23-01 04 – DOOR PARTS

Products

PositionProduct
2GLASS-OVEN DOOR, BLACK, OUTER
3HANDLE-OVEN DOOR
4316137003 Frigidaire Range / Cooktop End Cap
5LINER
65303202011 Frigidaire Door Seal
7WCI 3202148
8CLIP-RETAINING
9SEAL, FOAM (4)
10WCI 3203480
11SUPPORT, GLASS
12FSTNR. SPACER (6)
13BWCI 08011735
13ACLIP
13GLASS-OV DR (REAR)
15INSULATION-OVEN DOOR
15A5303300265 Frigidaire Oven Screw
16WCI 3015373
17SCREW – HANDLE (2)
