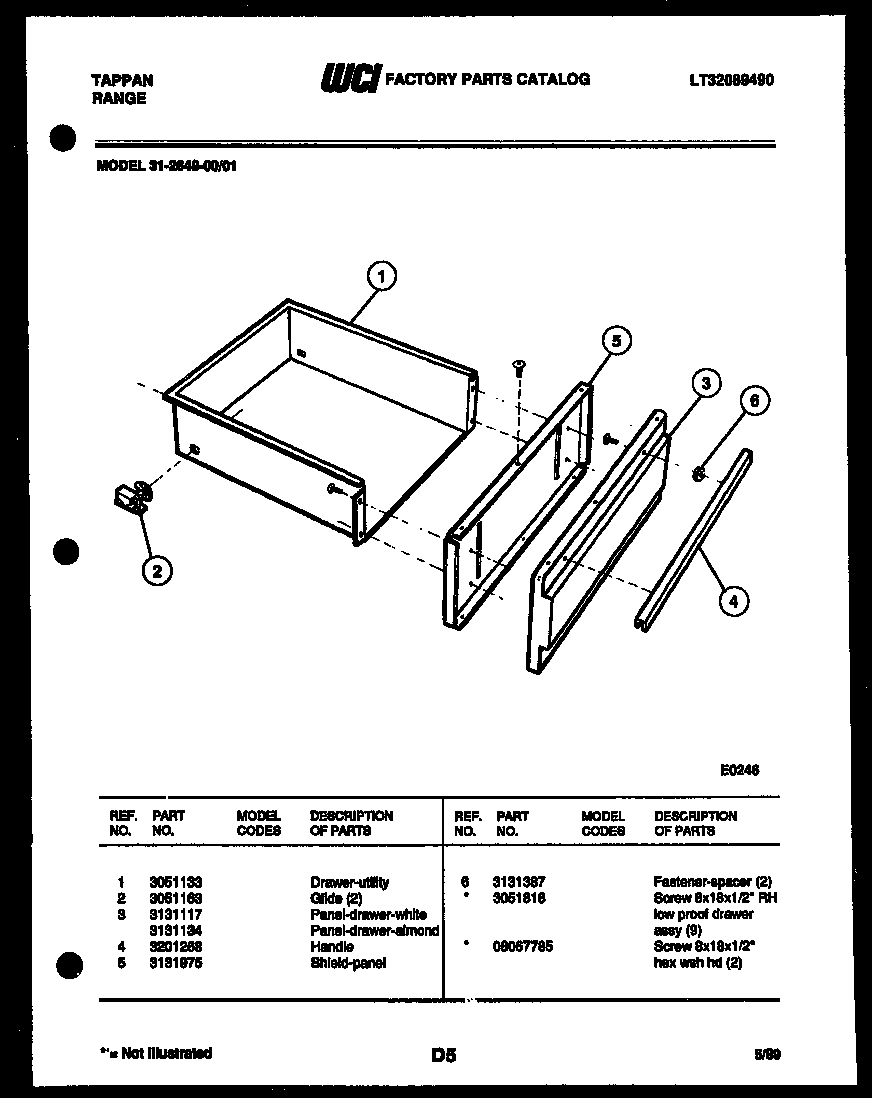

31-2649-00-01 05 – DRAWER PARTS

Written by

Products

Position	Product
*26488	5303300265 Frigidaire Oven Screw
*26488	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
1	WCI 3051133
2	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
3	PNL-DRAWER (WHTE)
4	HANDLE-DRAWER, BRUSHED CHROME
5	SHIELD-PNL
6	FSTNR, SPACER (2)
