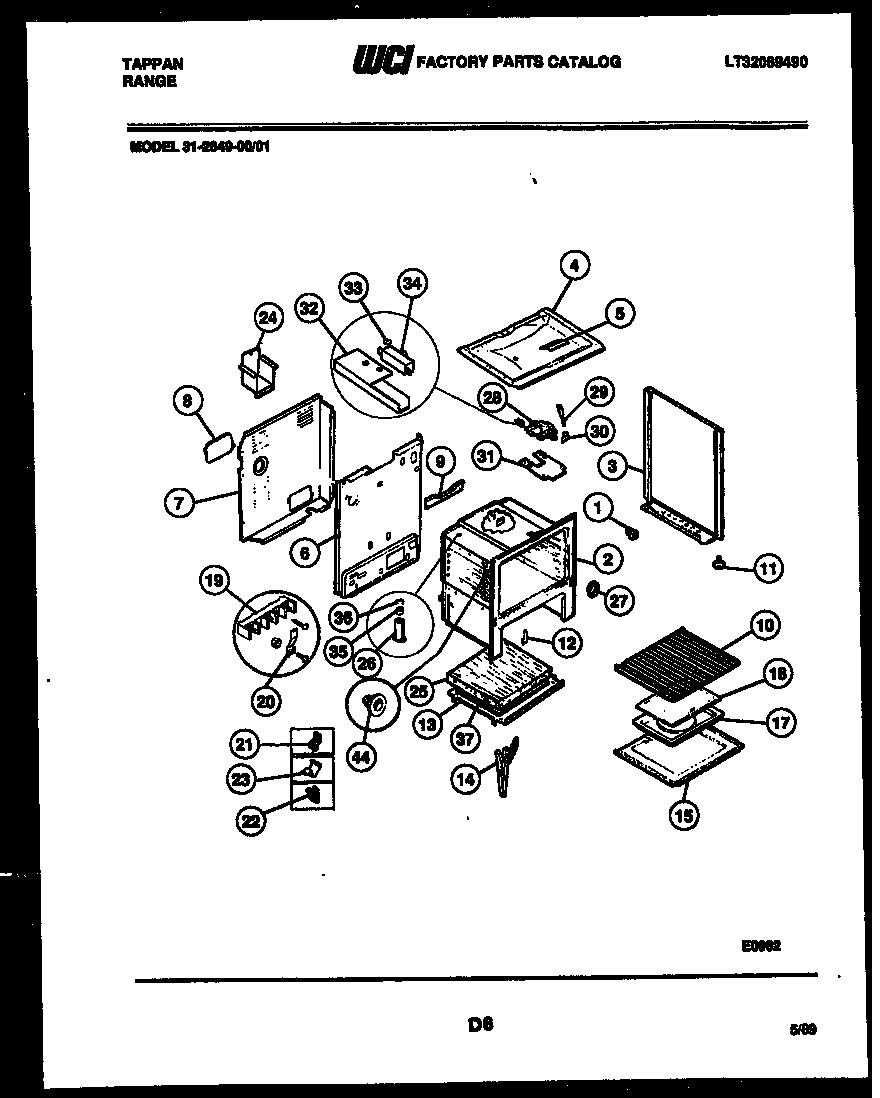

31-2649-00-01 06 – BODY PARTS

Products

Position	Product
*26492	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
*26492	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*26492	3203550 Frigidaire Oven Plug
*26492	ANTI-TIP KIT (NOT ILLUSTRATED)
*26492	INSULATION, OVEN WRAPPER
*26492	FASTENER-EDGE MTG (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3A	B/S-RH-(WHITE)
3	B/S-LH-(WHITE)
4	WCI 3051109
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHANL-DR HNG (2)
15	PANEL-OVEN BOTTOM
17	WCI 3013568
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3203582
25	316403803 Frigidaire Insulation
26	WCI 3051344
27	3051218 Frigidaire Oven Plate
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
27A	INSULATION, OVEN TOP
28	WCI 3015361
29	WCI 3131357
30	KNOB, LATCH
30A	WCI 08013188
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	WCI 3131672
35	WCI 08067810
36	WCI 08010606
37	WCI 3200848
