31-2649-00-01 07 – BACKGUARD

31-2649-00-01 07 – BACKGUARD

Written by

in

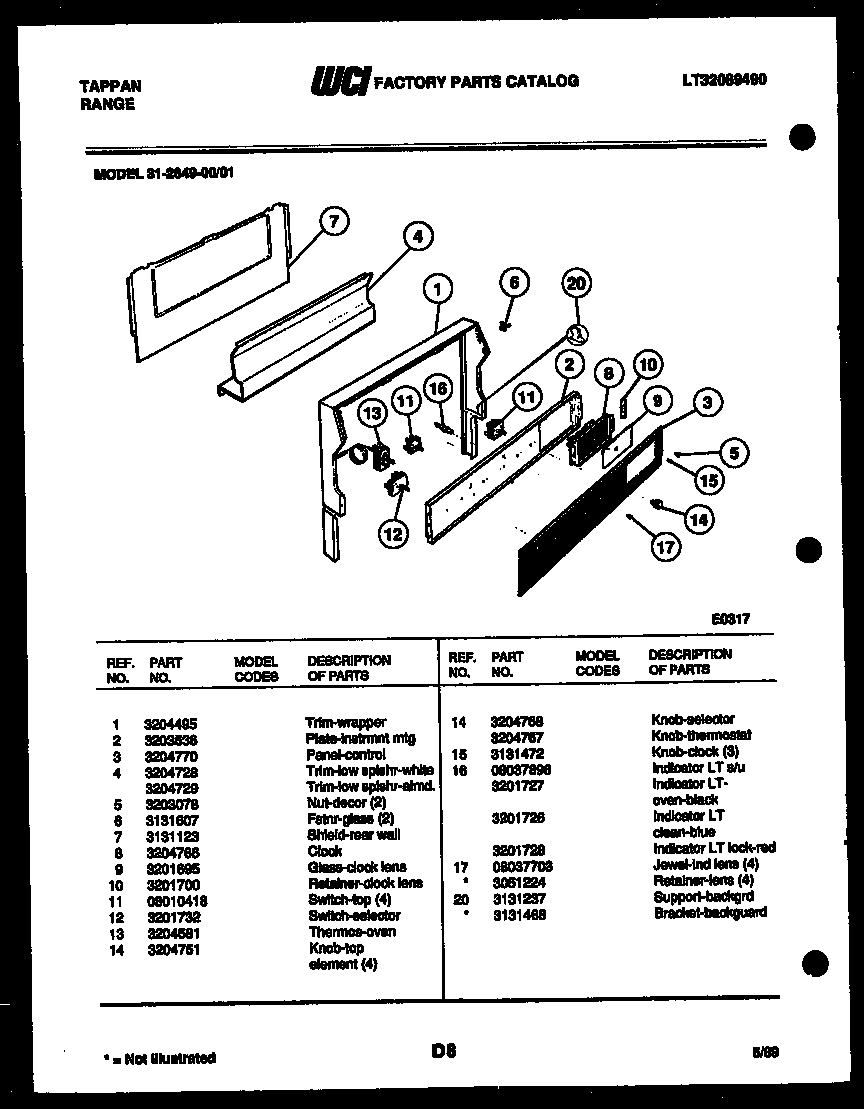

31-2649-00-01 07 – BACKGUARD

Products

PositionProduct
*26494WCI 3131468
1WCI 3204495
2PLATE-INSTRUMENT MTG
3WCI 3204770
4WCI 3204728
5NUT-DECOR (2)
6FASTENER, GLASS (2)
7SHIELD-BACKGUARD,REAR WALL
8ELECTRICAL CLOCK
9WCI 3201695
10RETAINER, CLOCK GLASS, (2)
11WCI 08010418
12WCI 3201732
13THERMOSTAT-OVEN
14AWCI 3204767
14WCI 3204768
14WCI 3204751
15KNOB-CLOCK
16BLIGHT/LAMP, INDICATOR, BLUE, 250 V
16LIGHT – IND 125 V (2)
16CINDICATOR LIGHT-LOCK (1)
16AINDICATOR LITE, OVEN (BLACK)
17WCI 08037703
17ARETAINER-LENS
20SUPPORT-BACKGUARD (2)
