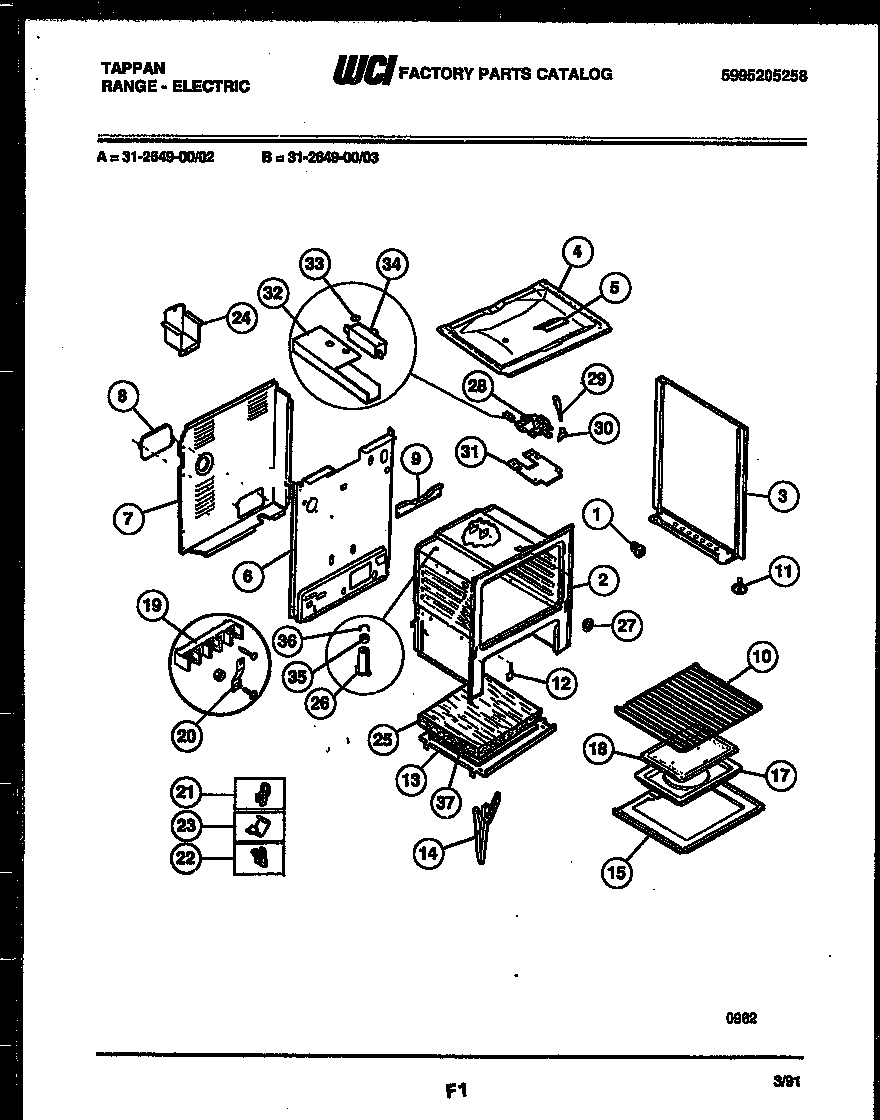

31-2649-00-03 06 – BODY PARTS

31-2649-00-03 06 – BODY PARTS

Written by

in

31-2649-00-03 06 – BODY PARTS

Products

PositionProduct
*46568FASTENER-EDGE MTG (NOT ILLUSTRATED)
*46568SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*46569ANTI-TIP KIT (NOT ILLUSTRATED)
*465693203550 Frigidaire Oven Plug
*46568INSULATION, OVEN WRAPPER
*46569DIAGRAM WIRING (NOT FOR PURCHASE) (NON-ILLUSTRATED)
*46569WCI 5303206618
1SPACER-BODYSIDE, (8)
3APNL-B/S-RH-WHITE
3AWCI 5303269543
3WCI 5303269545
3PNL-B/S-LH-WHITE
4WCI 5303271658
5WCI 08067757
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24WCI 3203582
25316403803 Frigidaire Insulation
26WCI 3051344
27C3131903 Frigidaire Door/Drawer Bumper
273051218 Frigidaire Oven Plate
27BINSULATION OVEN BACK (NON-ILLUSTRATED)
27AINSULATION, OVEN TOP
28WCI 5303015361
29WCI 5303131357
30AWCI 08013188
30WCI 3203218
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FSTNR-PUSH ON
34WCI 3131672
35WCI 08067810
36WCI 08010606
37WCI 3200848
