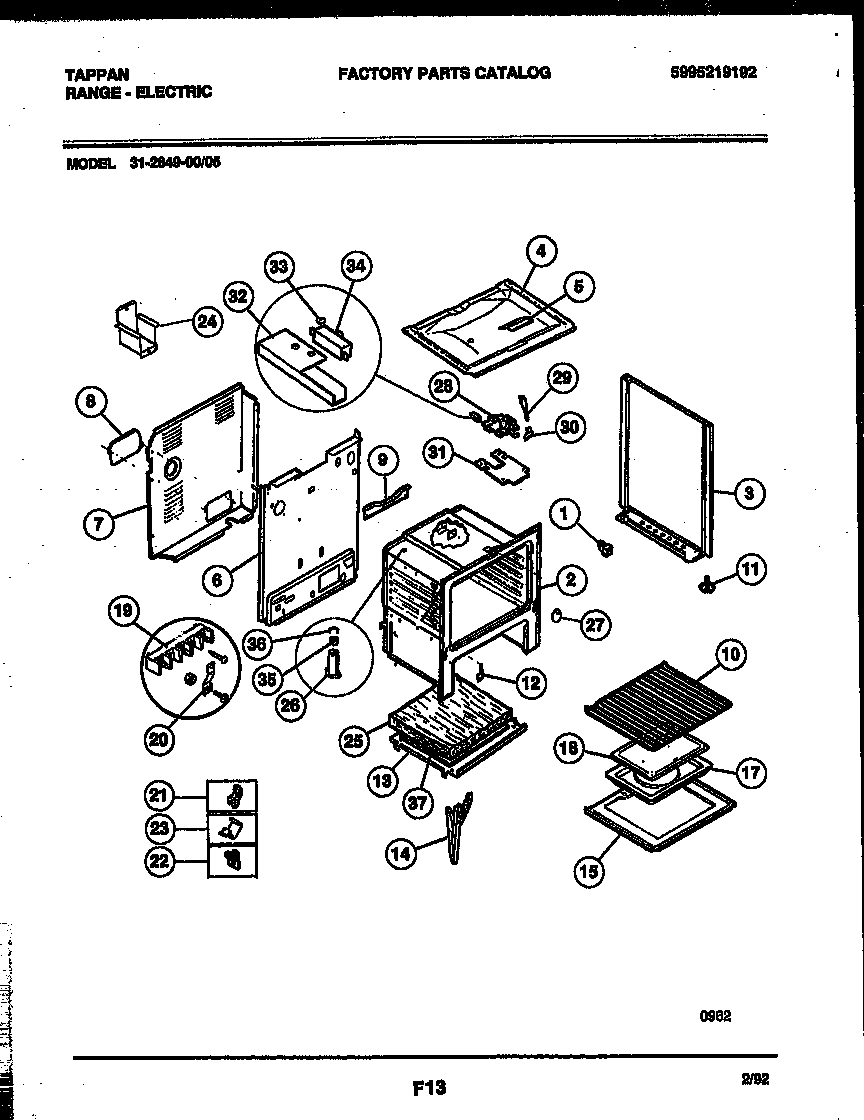

31-2649-00-05 06 – BODY PARTS

Products

Position	Product
*66522	INSULATION, OVEN WRAPPER
*66523	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*66523	3203550 Frigidaire Oven Plug
*66522	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*66523	DIAGRAM WIRING (NOT FOR PURCHASE) (NON-ILLUSTRATED)
*66523	ANTI-TIP KIT (NOT ILLUSTRATED)
*66523	WCI 5303206618
1	SPACER-BODYSIDE, (8)
3	PNL-B/S-LH-WHITE
3A	PNL-B/S-RH-WHITE
4	WCI 5303271658
5	WCI 08067757
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	Hinge,oven door ,(2)
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3203582
25	316403803 Frigidaire Insulation
26	WCI 3051344
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27A	INSULATION, OVEN TOP
27C	3131903 Frigidaire Door/Drawer Bumper
27	3051218 Frigidaire Oven Plate
28	WCI 5303015361
29	WCI 5303131357
30	WCI 3203218
30A	WCI 08013188
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	WCI 3131672
35	WCI 08067810
36	WCI 08010606
37	WCI 3200848
