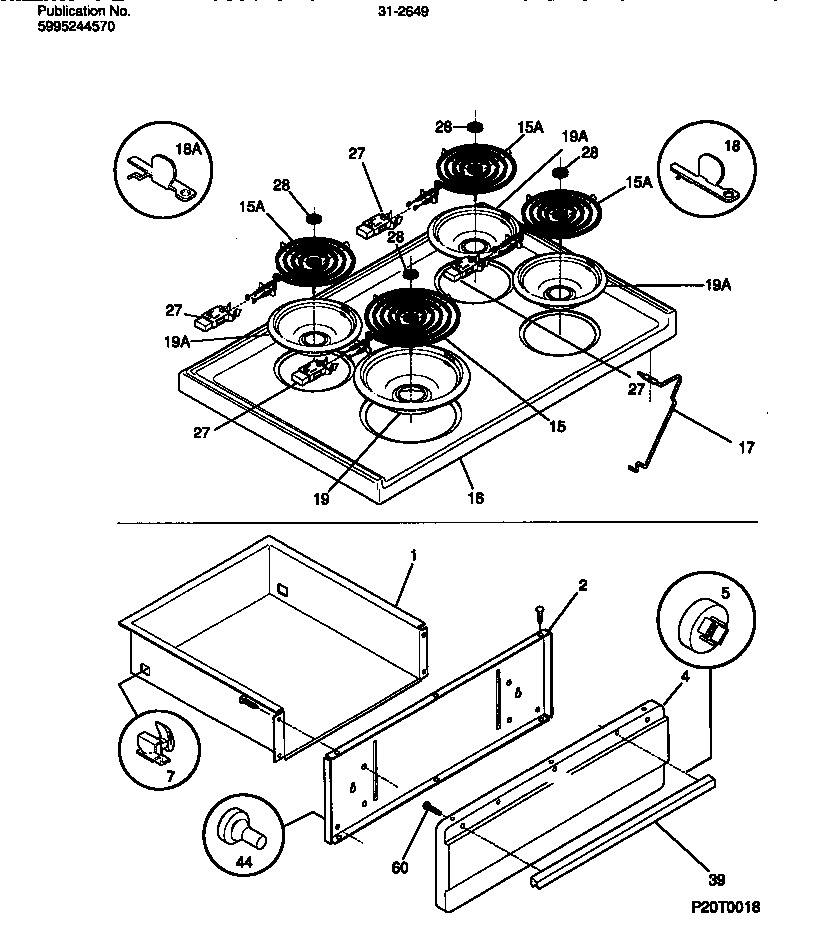

31-2649-00-06 04 – TOP/DRAWERadmin2025-04-26T08:52:05+00:0031-2649-00-06 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| *73443 | WCI 5303281584 |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4A | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 4 | PANEL-BROILER, WHITE |
| 5 | FSTNR, SPACER (2) |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 15 | 316442300 Frigidaire Oven 2100W Coil Element 8 |
| 15A | 318372210 Frigidaire Oven Range 6" 1250W Surface Element |
| 16 | WCI 3051379 |
| 17 | ROD-MAIN SUPPORT (2) |
| 18 | BRACKET-HINGE,MAIN TOP RH |
| 18A | BRACKET-HINGE,MAIN TOP LH |
| 19A | 316048414 Frigidaire Oven Range Chrome 6" Drip Bowl |
| 19 | 316048413 Frigidaire Oven Range Chrome 8" Drip Bow |
| 27 | 5303935058 Frigidaire Oven Burner Receptacle Kit |
| 28 | MEDALLION, STAINLESS STEEL, SURF ELEM |
| 39 | HANDLE-DRAWER, BRUSHED CHROME |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 60 | SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2 |
