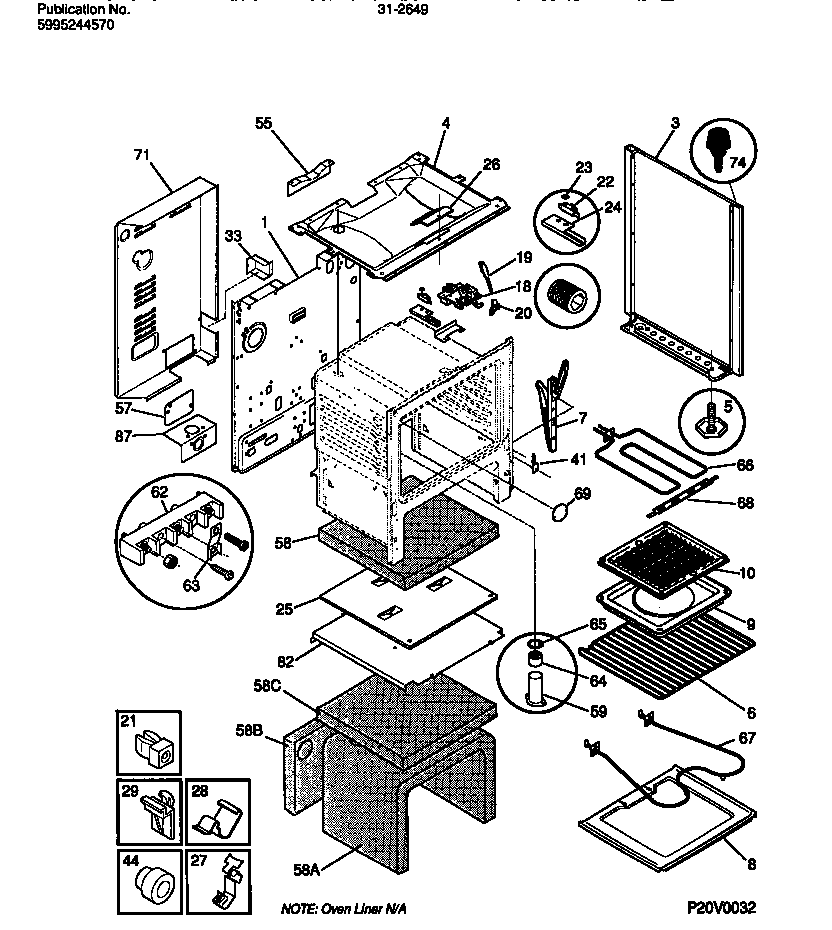

31-2649-00-07 03 – BODY

31-2649-00-07 03 – BODY

Written by

in

31-2649-00-07 03 – BODY

Products

PositionProduct
*734465303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 3203082
3APNL-B/S-LH-WHITE
3CSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3PNL-B/S-RH-WHITE
4WCI 5303271658
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5AANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
18WCI 5303015361
18ASHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 3203218
20AWCI 08013188
21SPACER-BODYSIDE, (8)
22ASTUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58BWCI 316054200
58CINSULATION, OVEN TOP
58AINSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
59WCI 3051344
62A316205500 Frigidaire Oven Nut
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
64WCI 08067810
65WCI 08010606
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71SHIELD-REAR WALL, LOWER
82SHIELD, OVEN BOTTOM
87WCI 5303206618
87B3203550 Frigidaire Oven Plug
87CWCI 08067961
87AFASTENER-EDGE MTG (NOT ILLUSTRATED)
