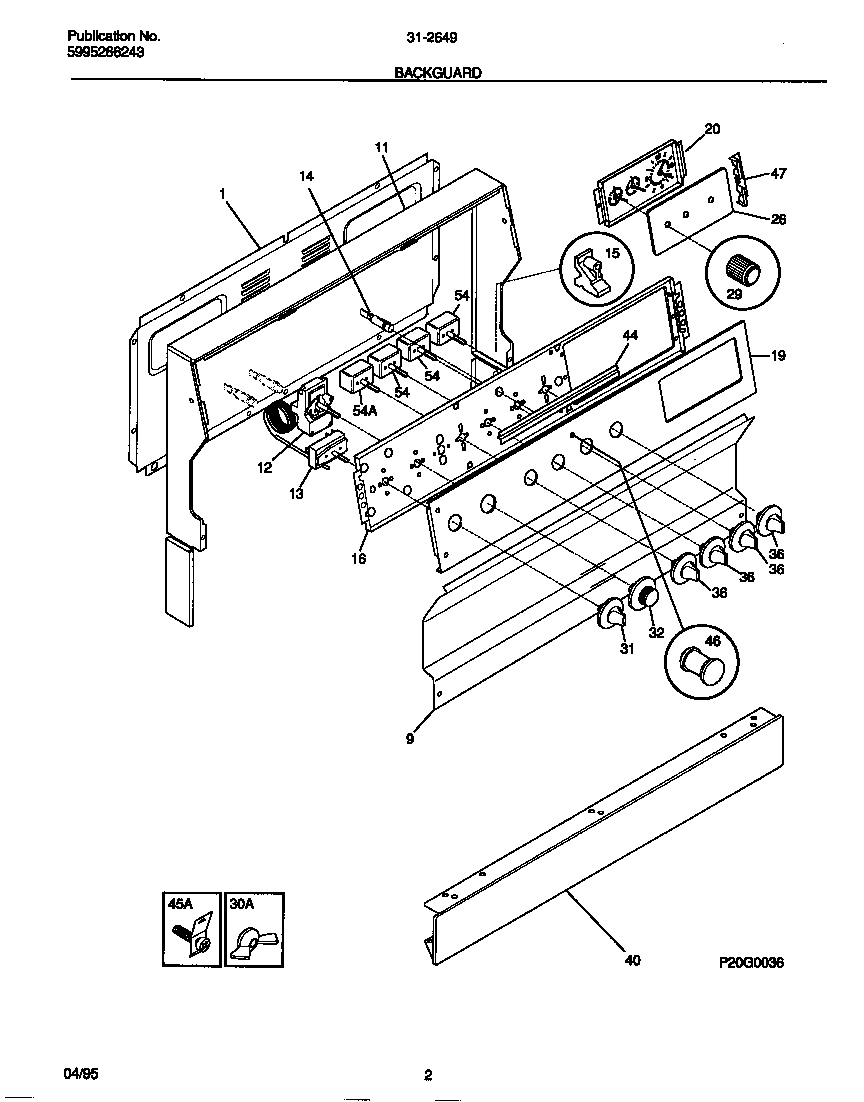

31-2649-00-08 02 – BACKGUARD

Products

Position	Product
*35160	316021105 Frigidaire Oven Screw
*35162	WCI 5303281584
*35161	WCI 5303272555
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043601
11	Trim,wrapper ,black
12	THERMOSTAT-OVEN
13	WCI 3201732
14C	INDICATOR LITE, OVEN (BLACK)
14D	INDICATOR LIGHT-LOCK (1)
14A	LIGHT/LAMP, INDICATOR, BLUE, 250 V
14B	WCI 5308037896
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042602
19	WCI 316034111
20	ELECTRICAL CLOCK
26	WCI 3201695
29	WCI 316029000
30	WCI 316064300
31	WCI 3204768
32	WCI 3204767
36	WCI 5303300893
40	WCI 316062343
44	WCI 3131468
45	WCI 316056902
46	WCI 316065800
47	RETAINER, CLOCK GLASS, (2)
54	5303935086 Frigidaire Oven Top Burner Switch Kit
