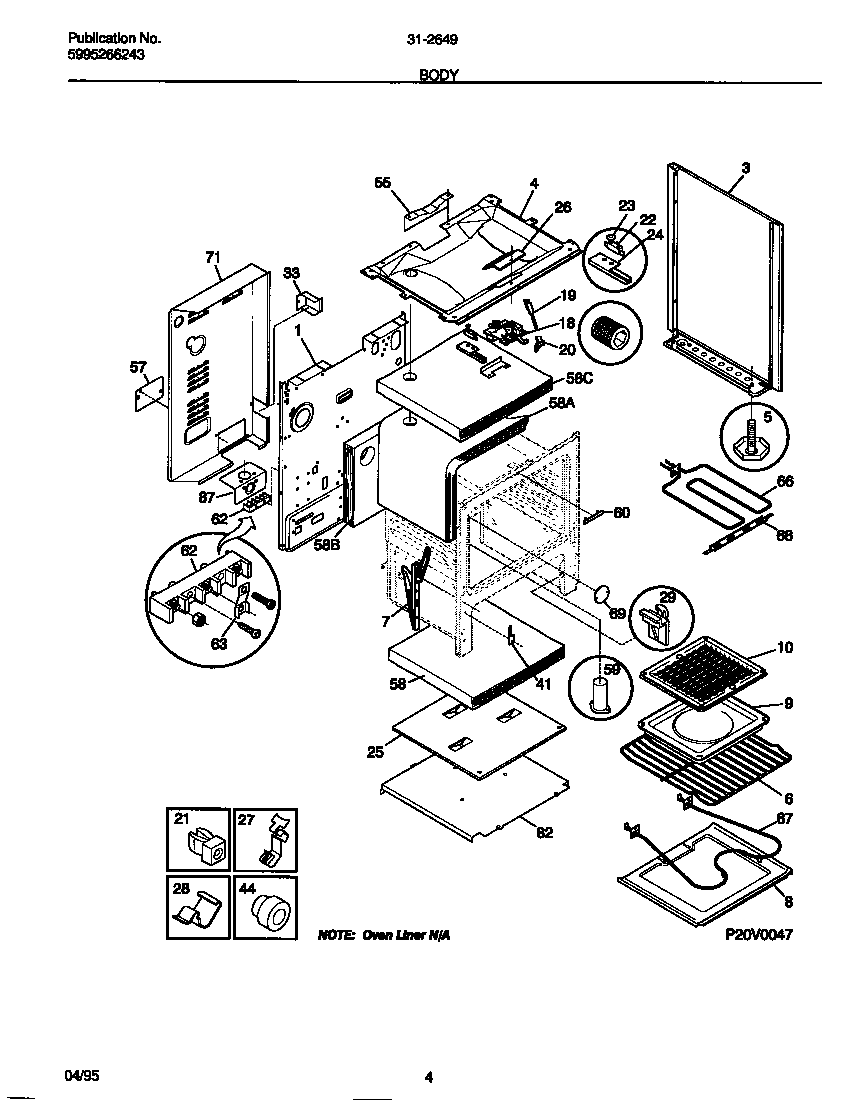

31-2649-00-08 03 – BODY

Products

PositionProduct
*35165316205500 Frigidaire Oven Nut
*35164WCI 316075400
*351633203550 Frigidaire Oven Plug
*351675303321319 Frigidaire Refrigerator White Touch Up Paint
*35169WCI 316001150
*35166WCI 5303281584
1WCI 316029405
3PNL-B/S-RH-WHITE
3PNL-B/S-LH-WHITE
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BFASTENER-EDGE MTG (NOT ILLUSTRATED)
4WCI 5303271658
5D316116000 Frigidaire Screw
5ENUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5CWCI 3934058
5ASCREW-LEVELING
5BANTI-TIP KIT
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
18AWCI 5303015361
18BSHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20AWCI 3203218
20BWCI 08013188
21SPACER-BODYSIDE, (8)
22BSTUD SPACER (2) (NON-ILLUSTRATED)
22ASWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58316403803 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
58WCI 316054200
58INSULATION, OVEN TOP
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71SHIELD-REAR WALL, LOWER
82SHIELD, OVEN BOTTOM
87WCI 5303206618
