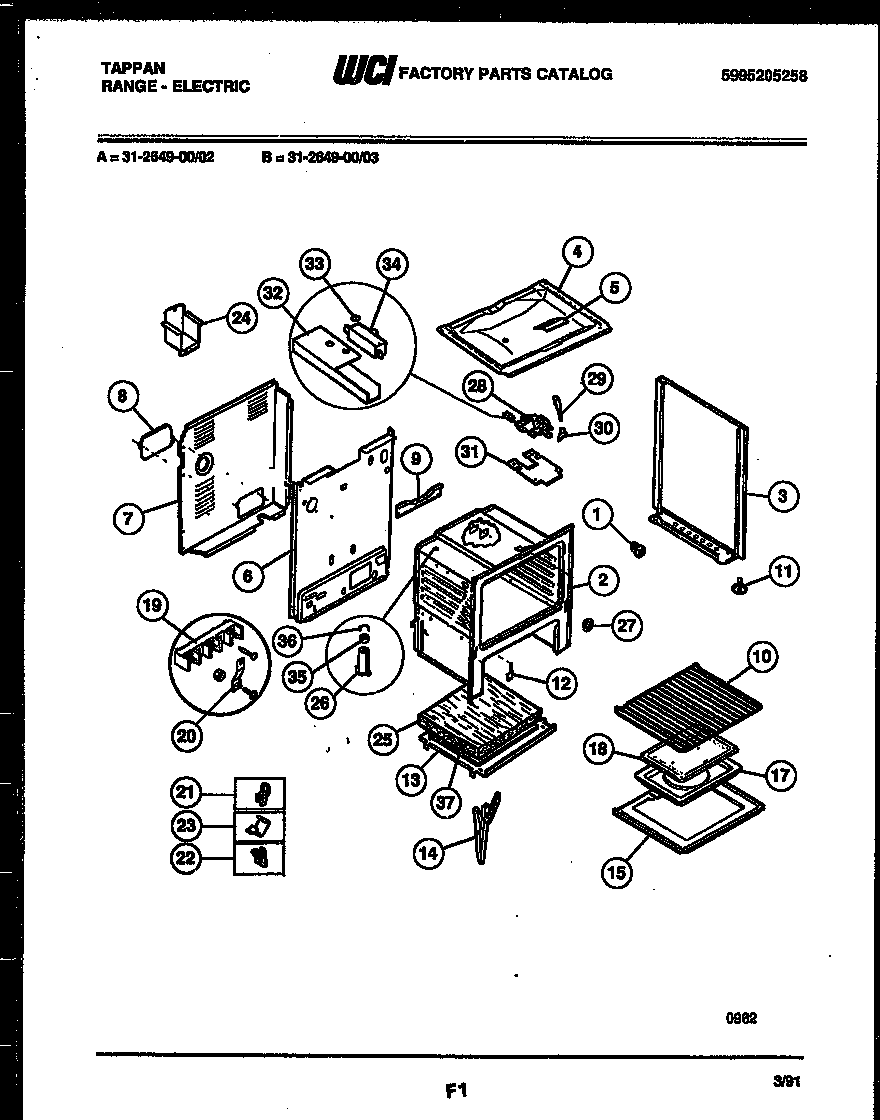

31-2649-23-02 06 – BODY PARTS

Products

PositionProduct
*46568FASTENER-EDGE MTG (NOT ILLUSTRATED)
*46569ANTI-TIP KIT (NOT ILLUSTRATED)
*465693203550 Frigidaire Oven Plug
*46568SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*46569WCI 5303206618
*46569DIAGRAM WIRING (NOT FOR PURCHASE) (NON-ILLUSTRATED)
*46568INSULATION, OVEN WRAPPER
1SPACER-BODYSIDE, (8)
3WCI 5303269545
3AWCI 5303269543
4WCI 08067749
5WCI 08067757
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24WCI 3203582
25316403803 Frigidaire Insulation
26WCI 3051344
273051218 Frigidaire Oven Plate
27AINSULATION, OVEN TOP
27BINSULATION OVEN BACK (NON-ILLUSTRATED)
27C3131903 Frigidaire Door/Drawer Bumper
28WCI 5303015361
29WCI 5303131357
30AWCI 08013188
30WCI 3203218
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FSTNR-PUSH ON
34WCI 3131672
35WCI 08067810
36WCI 08010606
37WCI 3200848
