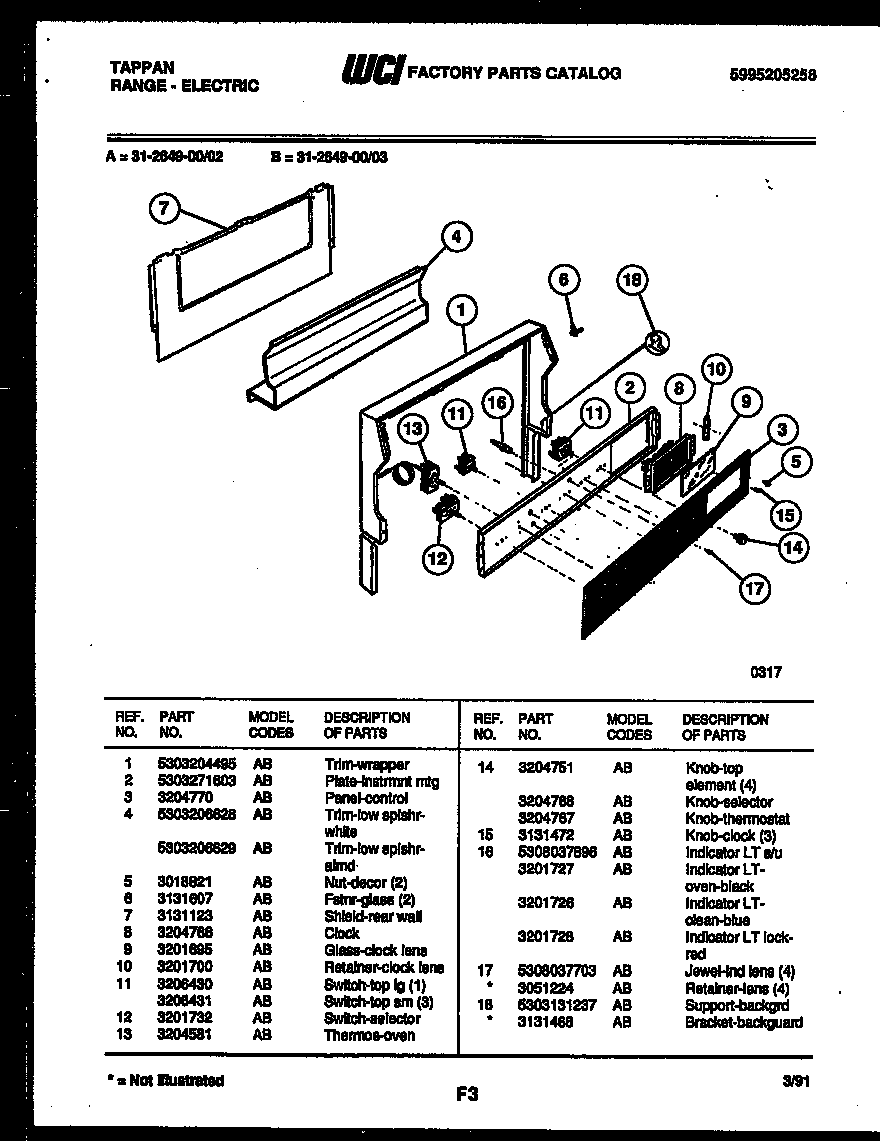

31-2649-23-02 07 – BACKGUARD

Products

Position	Product
*46570	WCI 3131468
1	WCI 5303204495
2	PLATE-INSTR MTG
3	WCI 3204770
4	WCI 5303206629
4	WCI 5303206628
5	WCI 3018821
6	FASTENER, GLASS (2)
7	SHIELD-BACKGUARD,REAR WALL
8	ELECTRICAL CLOCK
9	WCI 3201695
10	RETAINER, CLOCK GLASS, (2)
11	5303935086 Frigidaire Oven Top Burner Switch Kit
12	WCI 3201732
13	THERMOSTAT-OVEN
14	WCI 3204751
14A	WCI 3204768
14B	WCI 3204767
15	KNOB-CLOCK
16B	LIGHT/LAMP, INDICATOR, BLUE, 250 V
16A	INDICATOR LITE, OVEN (BLACK)
16C	INDICATOR LIGHT-LOCK (1)
16	WCI 5308037896
17A	RETAINER-LENS
17	JEWEL LENS-AMBER
18	SUPPORT-BACKGUARD,(2)
