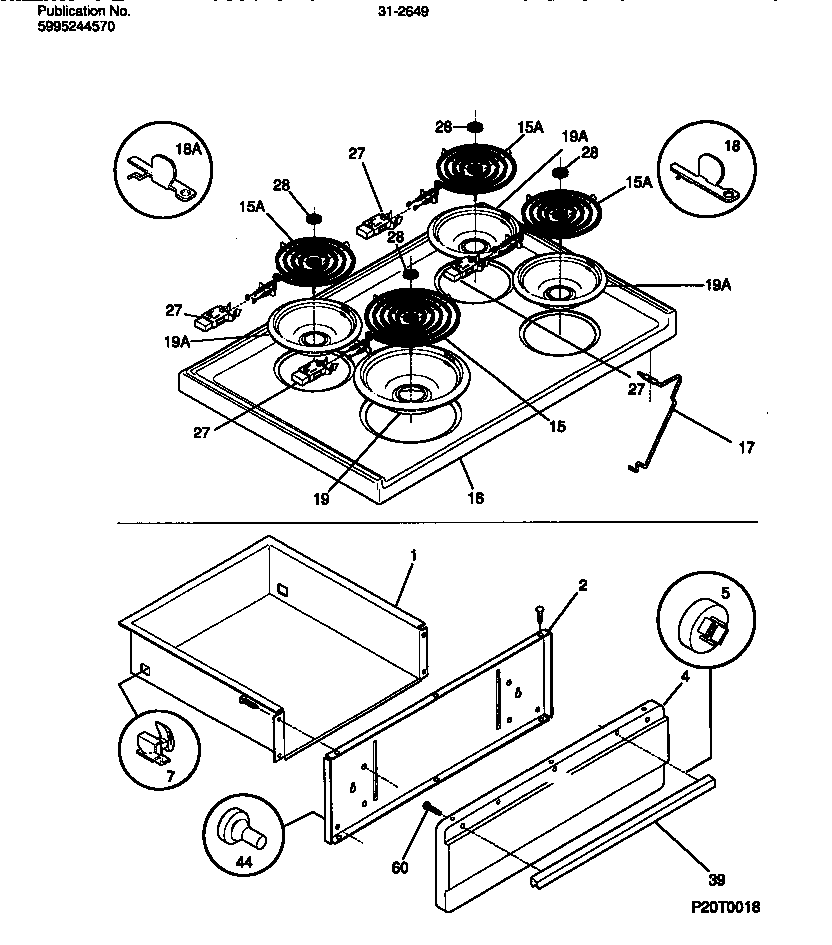

31-2649-23-07 04 – TOP/DRAWER

31-2649-23-07 04 – TOP/DRAWER

Products

PositionProduct
*73443WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3051380
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19AWCI 530395057
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
39HANDLE-DRAWER, BRUSHED CHROME
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
