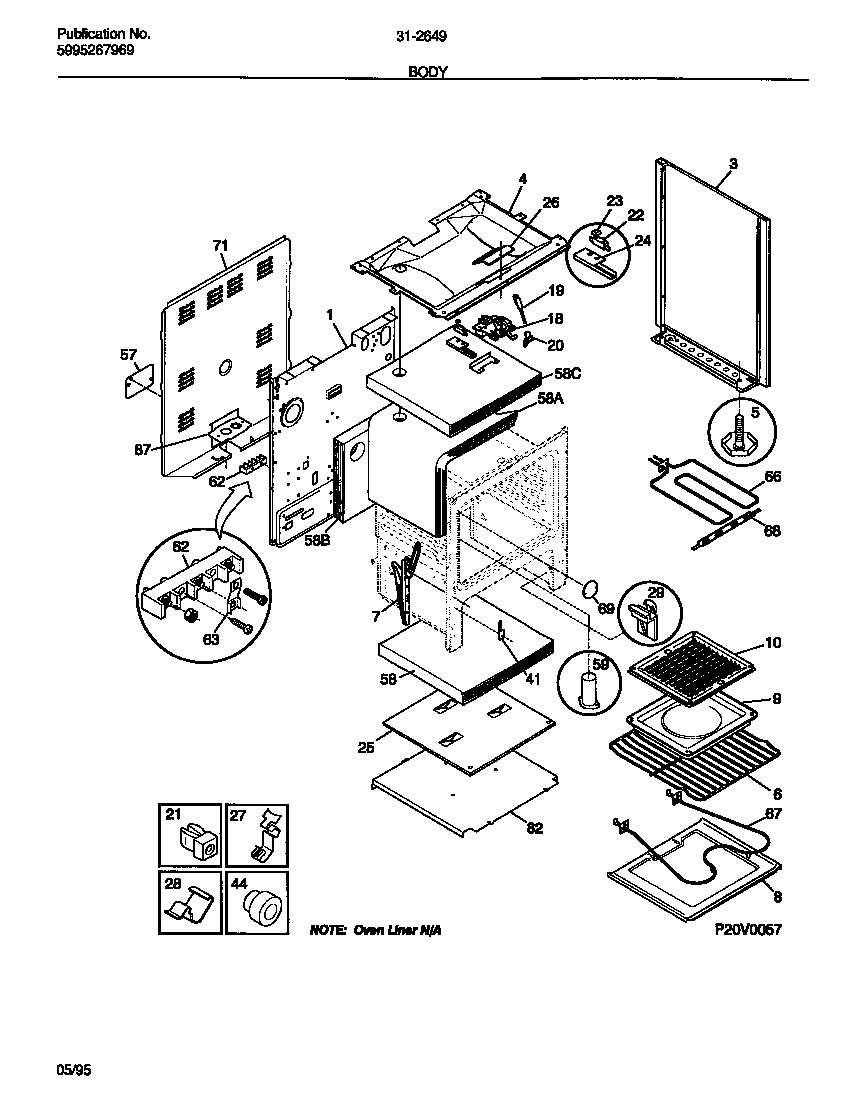

31-2649-23-09 03 – BODY

31-2649-23-09 03 – BODY

Written by

in

31-2649-23-09 03 – BODY

Products

PositionProduct
*89524WCI 316075400
*89526WCI 5303281584
*89527WCI 316001150
*895233203550 Frigidaire Oven Plug
*89525316205500 Frigidaire Oven Nut
1WCI 316080801
3AWCI 316081007
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BFASTENER-EDGE MTG (NOT ILLUSTRATED)
3WCI 316081006
4WCI 5303271658
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5AWCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
18ASHIELD-LATCH (NON-ILLUSTRATED)
18WCI 5303015361
19WCI 5303131357
20WCI 3203218
20AWCI 08013188
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22ASTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58AINSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
58CINSULATION, OVEN TOP
58BWCI 316054200
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
