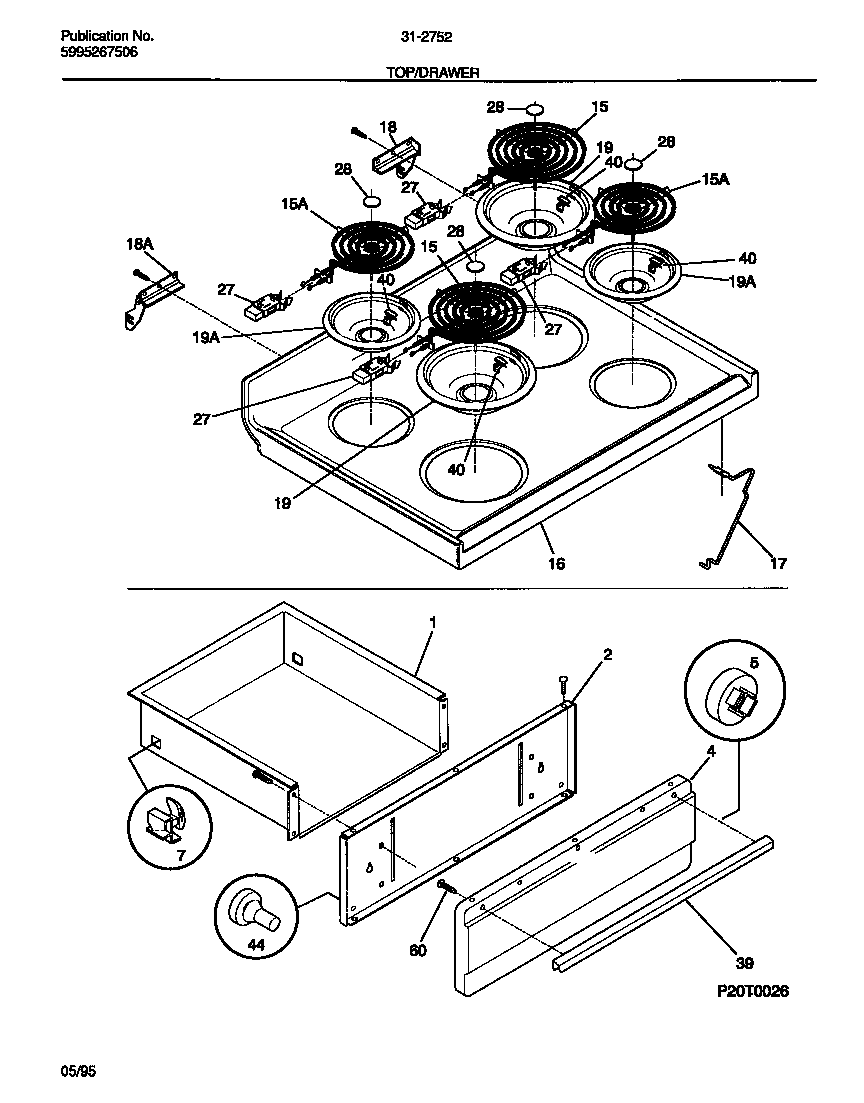

31-2752-00-03 04 – TOP/DRAWER

31-2752-00-03 04 – TOP/DRAWER

Written by

in

31-2752-00-03 04 – TOP/DRAWER

Products

PositionProduct
*84928WCI 5303281379
*84930131243700 Frigidaire Screw
*84929WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28AMEDALLION, STAINLESS STEEL, SURF ELEM
28B5303017715 Frigidaire Medallion
39HANDLE-DRAWER, WHITE
40316058601 Frigidaire Oven Clip
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
