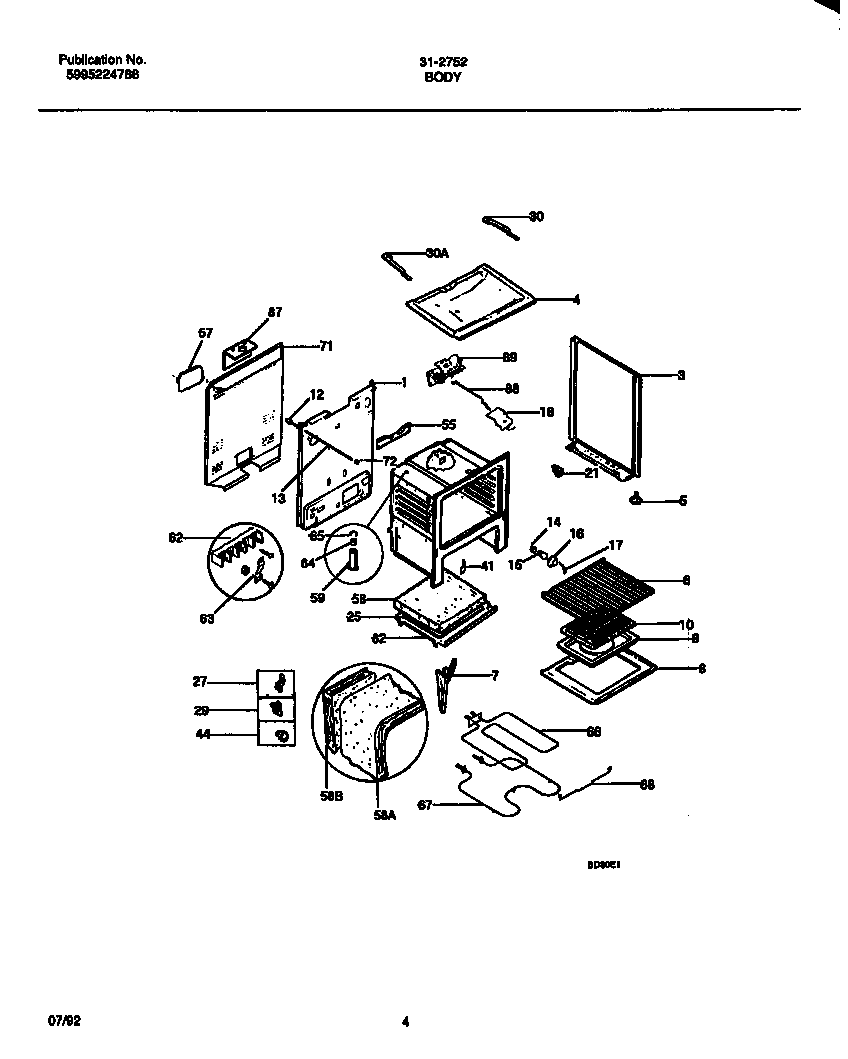

31-2752-23-01 03 – BODY PARTS

Products

PositionProduct
1BACK-MAIN, AUTOLATCH
3WCI 5303269543
3BFASTENER-EDGE MTG (NOT ILLUSTRATED)
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3DWCI 5303269545
4WCI 5303271756
5AANTI-TIP KIT (NOT ILLUSTRATED)
5SCREW-LEVELING
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30WCI 5303263574
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58316403803 Frigidaire Insulation
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
58AWCI 316047700
58AINSULATION, OVEN TOP
