31-2757-00-02 02 – DOOR PARTS

31-2757-00-02 02 – DOOR PARTS

Written by

in

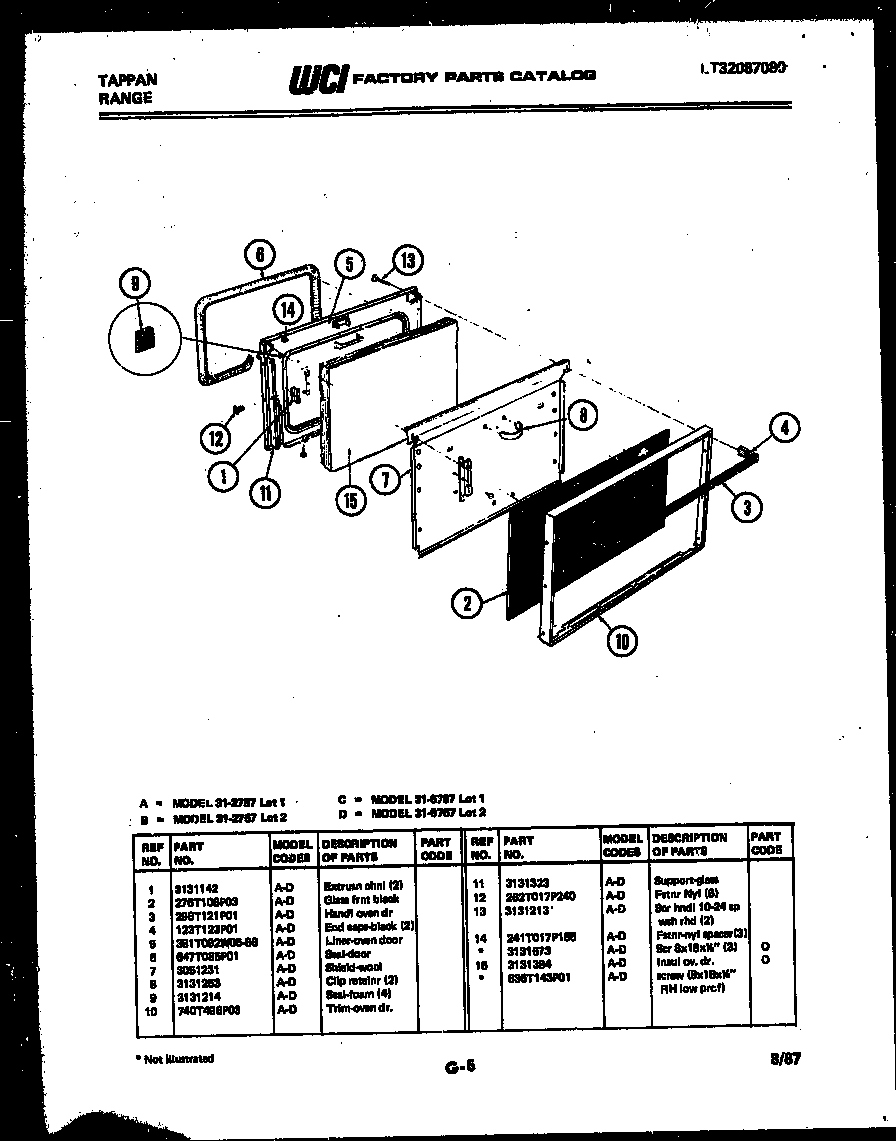

31-2757-00-02 02 – DOOR PARTS

Products

PositionProduct
*595505303300265 Frigidaire Oven Screw
1EXTRUSION-CHANNL
2GLASS FRONT, BLACK
3WCI 296T121P01
4316137003 Frigidaire Range / Cooktop End Cap
5LINER, OVEN DOOR
65303131601 Frigidaire Oven Seal
7WCI 3051231
8WCI 3131253
9SEAL, FOAM (4)
10WCI 740T496P03
11SUPPORT, GLASS
12WCI 262T017P240
13SCREW HANDL (2)
14FSTNR 8AU TYPE (3)
14ASCREW DOOR MTG
15INSULATION, OVEN DOOR
