31-2758-00-03 07 – BACKGUARD – Aparts

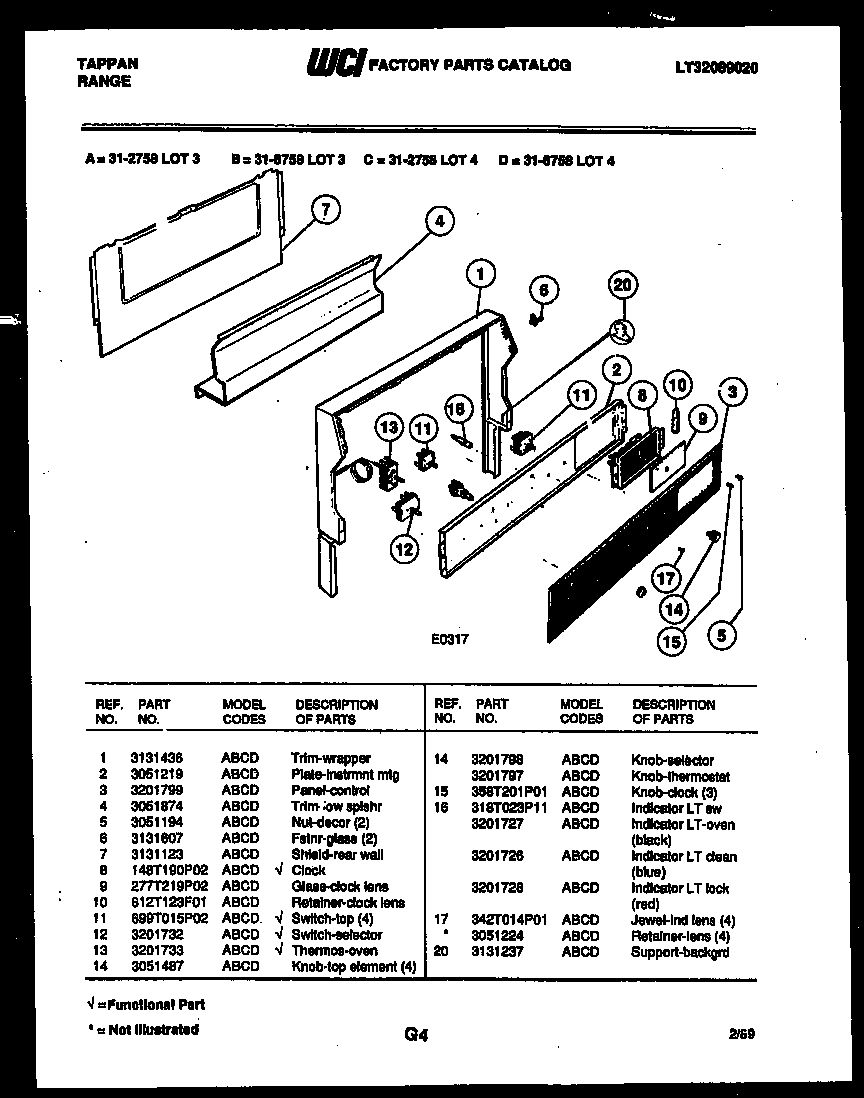

31-2758-00-03 07 – BACKGUARD

Products

Position	Product
1	WCI 3131436
2	PLATE-INSTR MTG
3	WCI 3201799
4	TRIM, LOWER SPLASHER
5	NUT - DECOR (2)
6	FASTENER, GLASS (2)
7	SHIELD-BACKGUARD,REAR WALL
8	ELECTRICAL CLOCK
9	WCI 277T219P02
10	RETAINR-CLOCK LENS (2)
11	SWITCH S/U (4)
12	WCI 3201732
13	THERMOSTAT, OVEN
14	WCI 3201798
14A	WCI 3201797
14	KNOB-TOP ELM (4)
15	WCI 358T201P01
16C	INDICATOR LIGHT-LOCK (1)
16	INDICATOR LIGHT (4)
16B	LIGHT/LAMP, INDICATOR, BLUE, 250 V
16A	INDICATOR LITE, OVEN (BLACK)
17	LENS-IND LIGHT (2)
17A	RETAINER-LENS
20	SUPPORT-BACKGUARD (2)
