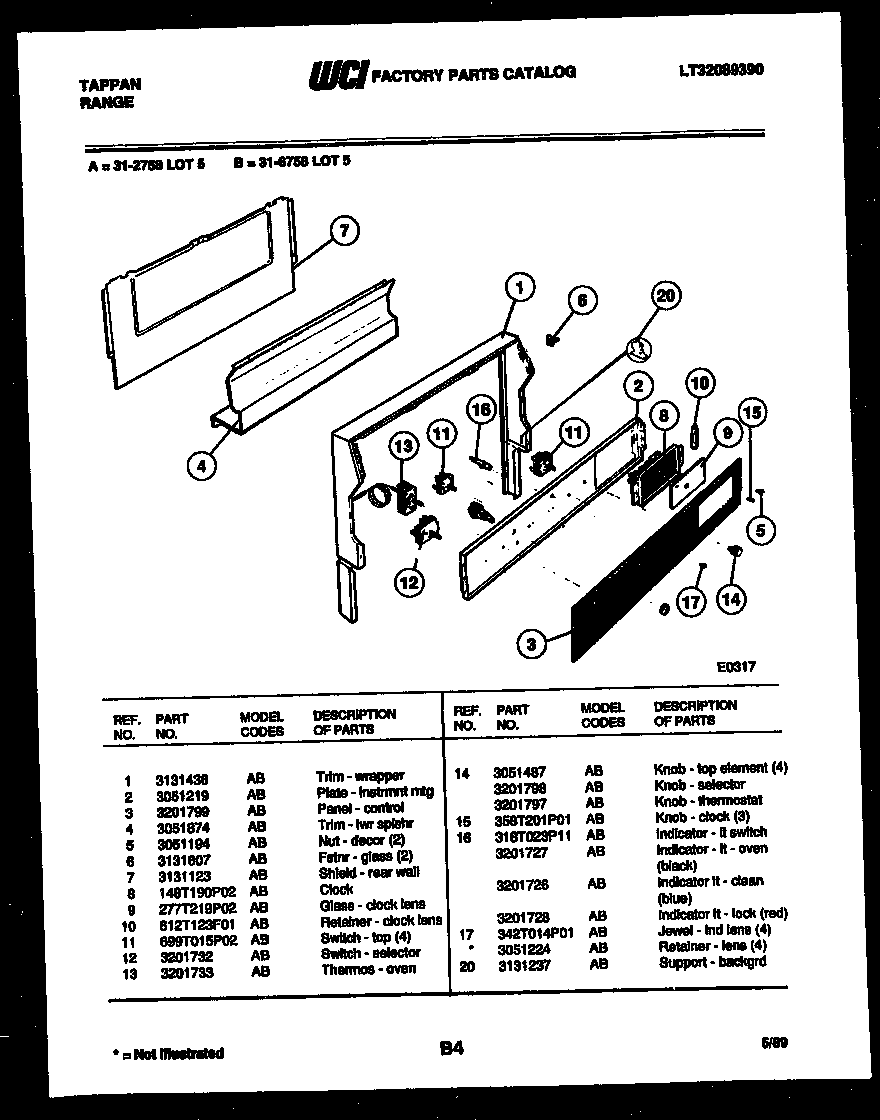

31-2758-23-05 07 – BACKGUARD

31-2758-23-05 07 – BACKGUARD

Written by

in

31-2758-23-05 07 – BACKGUARD

Products

PositionProduct
1WCI 3131436
2PLATE-INSTR MTG
3WCI 3201799
4TRIM, LOWER SPLASHER
5NUT – DECOR (2)
6FASTENER, GLASS (2)
7SHIELD-BACKGUARD,REAR WALL
8ELECTRICAL CLOCK
9WCI 277T219P02
10RETAINR-CLOCK LENS (2)
11SWITCH S/U (4)
12WCI 3201732
13THERMOSTAT, OVEN
14AWCI 3201798
14BWCI 3201797
14KNOB-TOP ELM (4)
15WCI 358T201P01
16CINDICATOR LIGHT-LOCK (1)
16INDICATOR LIGHT (4)
16BLIGHT/LAMP, INDICATOR, BLUE, 250 V
16AINDICATOR LITE, OVEN (BLACK)
17LENS-IND LIGHT (2)
17ARETAINER-LENS
20SUPPORT-BACKGUARD (2)
