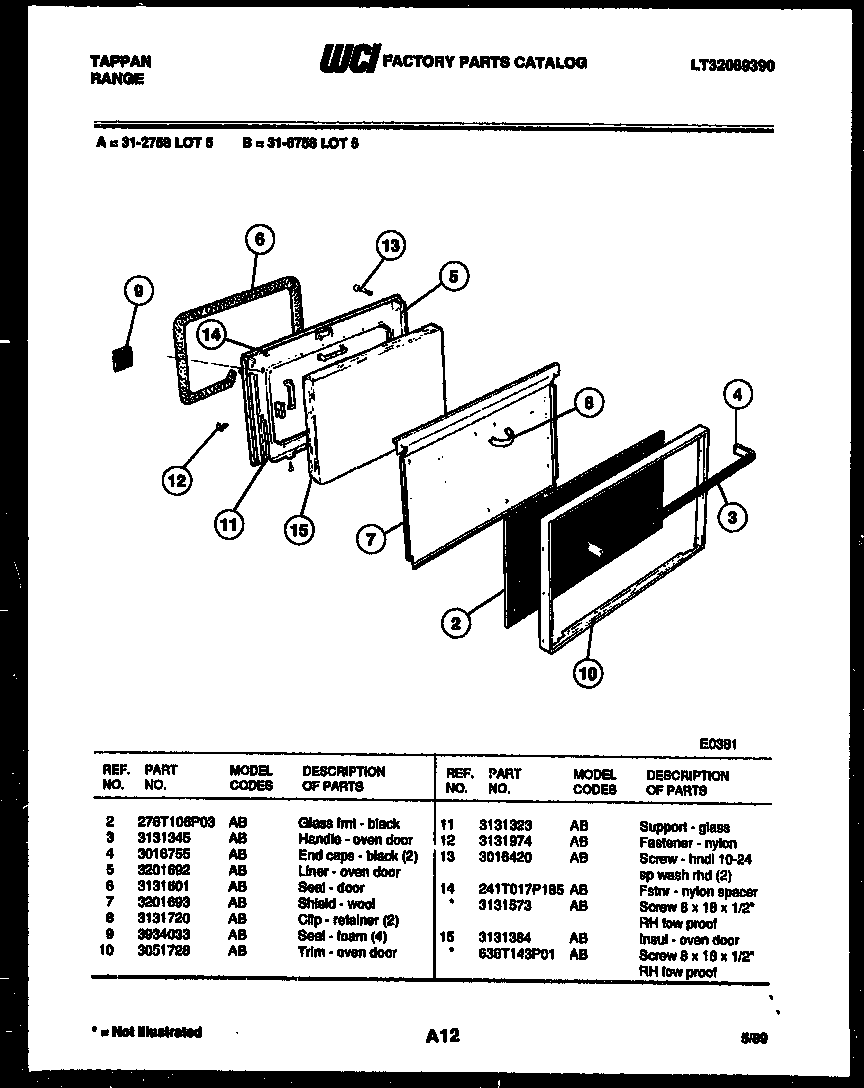

31-2758-66-05 02 – DOOR PARTS

31-2758-66-05 02 – DOOR PARTS

Written by

in

31-2758-66-05 02 – DOOR PARTS

Products

PositionProduct
*247455303300265 Frigidaire Oven Screw
2GLASS FRONT, BLACK
3HANDLE
4316137003 Frigidaire Range / Cooktop End Cap
5WCI 3201692
65303131601 Frigidaire Oven Seal
7WCI 3201693
8CLIP-RETAINING
9SEAL, FOAM (4)
10WCI 3051728
11SUPPORT, GLASS
12FSTNR. SPACER (6)
13SCREW – HANDLE (2)
14FSTNR 8AU TYPE (3)
14ASCREW DOOR MTG
15INSULATION, OVEN DOOR
