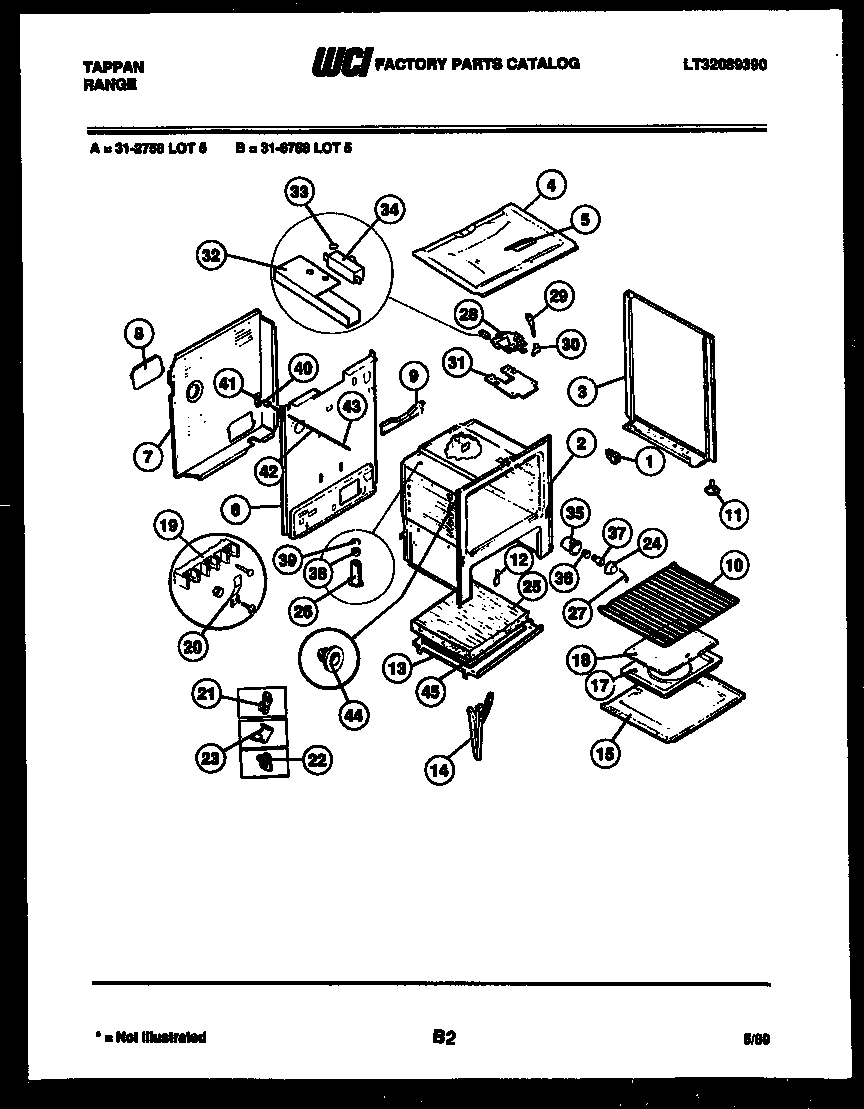

31-2758-66-05 06 – BODY PARTS

Products

Position	Product
*24755	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*24755	ANTI-TIP KIT (NOT ILLUSTRATED)
*24755	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*24755	WCI 3131305
*24755	INSULATION, OVEN WRAPPER
1	SPACER, BODYSIDE (8)
3	PNL B/S-RH (WHEAT)
3A	PNL B/S-LH (WHEAT)
4	WCI 3051109
5	WCI 3131101
6	WCI 3203404
7	SHIELD, LOWER WALL
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHANL-DR HNG (2)
15	WCI 3051104
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
25	316403803 Frigidaire Insulation
26	WCI 3051344
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
27	WCI 3131104
27A	INSULATION, OVEN TOP
27C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 3015361
29	WCI 3051473
30	KNOB, LATCH
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	WCI 241T001P01
34	WCI 3131672
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	WCI 3202622
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 174T329P01
44	BUTTON-REMOTE SW
45	WCI 3200848
