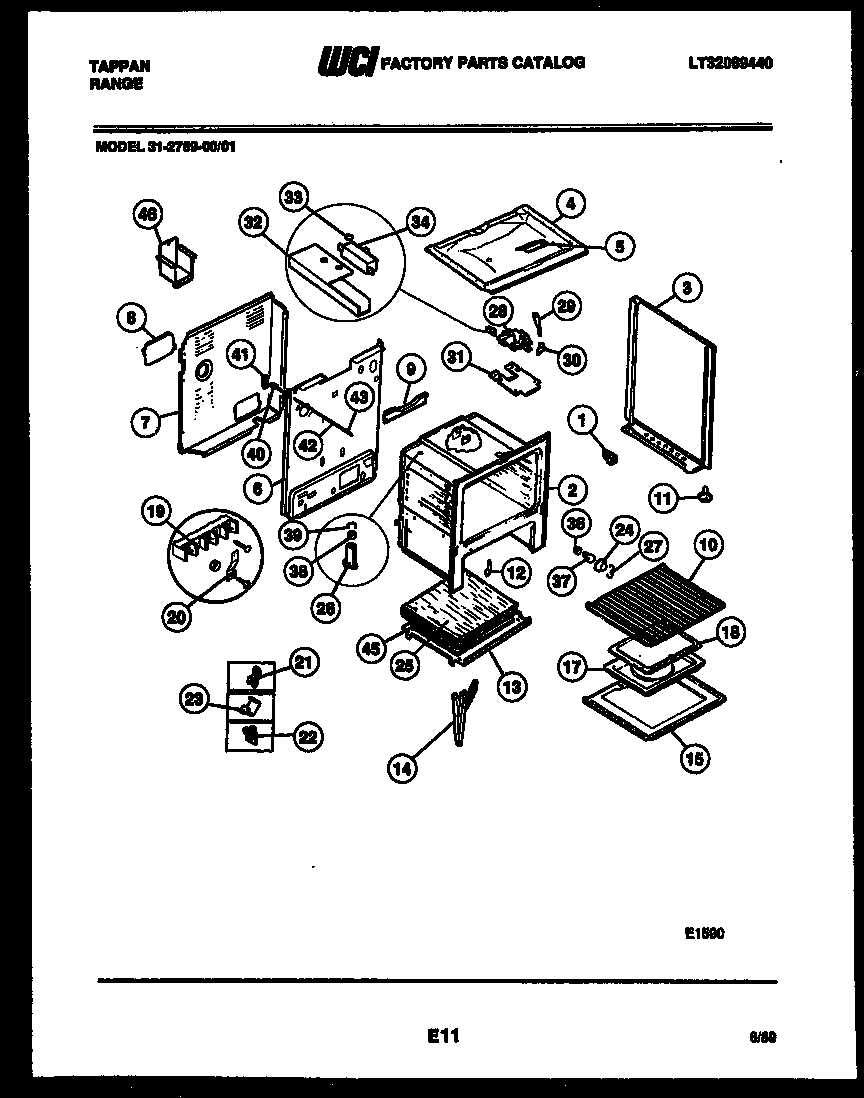

31-2759-00-01 06 – BODY PARTSadmin2025-04-26T08:52:20+00:0031-2759-00-01 06 – BODY PARTS
Products
| Position | Product |
|---|
| *25187 | ANTI-TIP KIT (NOT ILLUSTRATED) |
| *25188 | BRKT, RANGE CABLE MTG (NON-ILLUSTRATED) |
| *25188 | 3203550 Frigidaire Oven Plug |
| 1 | SPACER-BODYSIDE, (8) |
| 3 | B/S-LH-(WHITE) |
| 3A | B/S-RH-(WHITE) |
| 4 | WCI 3051109 |
| 5 | WCI 3131101 |
| 6 | WCI 3203082 |
| 7 | SHIELD-REAR WALL, LOWER |
| 8 | COVER-ACCESS |
| 9 | COVER-FLUE |
| 10 | 316067902 Frigidaire Oven Rack |
| 11 | SCREW-LEVELING |
| 12 | WCI 3131570 |
| 13 | SHIELD, OVEN BOTTOM |
| 14 | CHANL-DR HNG (2) |
| 15 | PANEL-OVEN BOTTOM |
| 17 | WCI 3013568 |
| 18 | WCI 3131356 |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | WCI 08011708 |
| 21 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 22 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 23 | WCI 3051367 |
| 24 | 5304524341 Frigidaire Lens |
| 25 | 316403803 Frigidaire Insulation |
| 26 | WCI 3051344 |
| 27B | INSULATION OVEN BACK (NON-ILLUSTRATED) |
| 27 | WCI 3131104 |
| 27C | 3131903 Frigidaire Door/Drawer Bumper |
| 27A | INSULATION, OVEN TOP |
| 28 | WCI 3015361 |
| 29 | WCI 3131357 |
| 30 | KNOB, LATCH |
| 30A | WCI 08013188 |
| 31 | SHIELD-LATCH |
| 32 | SHIELD-LATCH (NON-ILLUSTRATED) |
| 33 | FASTENER, PUSH ON (3) |
| 34 | WCI 3131672 |
| 36 | 316116400 Frigidaire Oven Light Socket |
| 37 | 316538904 Frigidaire Oven Lamp Light |
| 38 | WCI 08067810 |
| 39 | WCI 08010606 |
| 40 | WCI 3202622 |
| 41 | BRKT LIGHT SWITCH |
| 42 | ROD-LIGHT SWITCH |
| 43 | WCI 3051251 |
| 45B | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| 45C | FASTENER-EDGE MTG (NOT ILLUSTRATED) |
| 45 | WCI 3200848 |
| 45A | INSULATION, OVEN WRAPPER |
| 46 | WCI 3203582 |
